Key features

• •Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30 degrees inclined 360 degrees rotatable digital binocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
• •Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with measurement, size 5-1/2inch x 4-1/4inch (140mm x 110mm), translation range 3inch x 1-9/16inch (78mm x 40mm); Focus: coaxial coarse and fine focus knobs on both side, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable

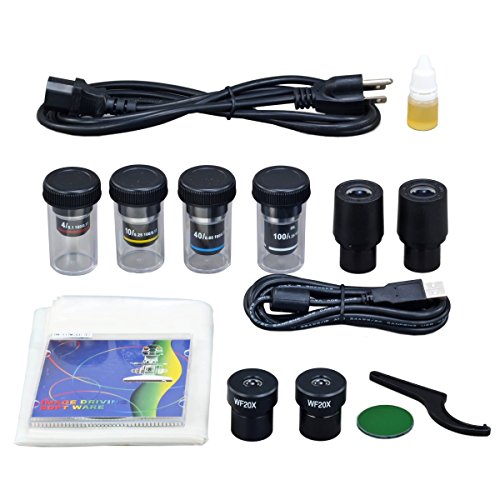

• •Condenser: Abbe NA1.25 with iris aperture diaphragm and swing-out filter holder, rack and pinion adjustment; Solid metal base and stand; 100-piece blank glass slides with100-piece cover slips and 100-sheet lens cleaning paper included; Power supply: AC 100V~240V 50/60Hz (US and Canada plug)

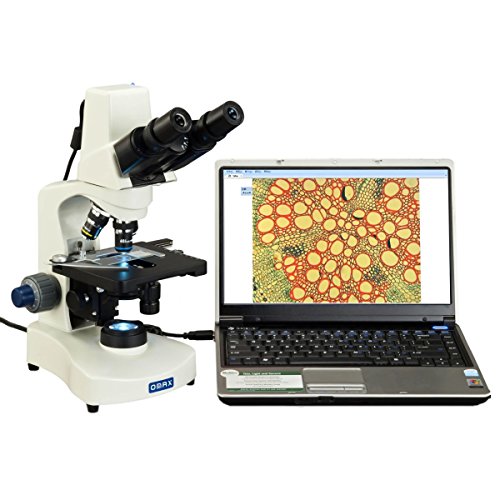

• •Built-in digital camera: - Imaging device: 3.0 mega pixels, 1/2.5inch CMOS - Effective pixels: 2048x1536 - Maximum still image resolution: 2048x1536 pixels - Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768 - Interface: USB2.0 ( 480MB/ second) - SNR: >40dB - Software compatible with Windows
• •5-year warranty against manufacturing defects
