Signswise Incremental Optical Rotary Encoder for Arduino 360P/R Wide Voltage Power Supply DC 5-24V 6mm Shaft Quadrature
Key features
- •Model: incremental rotary encoders, AB two phases.
- •Light weight and small size. Easy installation. Cost-effective features.
- •360P/R-360 pulses per revolution. By rotating the grating disk and optocoupler direction, this incremental optical rotary encoder generate counting pulses.
- •Suitable for a variety of intelligent control of automatic guillotine paper machine, civilian measured height human scale, students racing robots and steel cut length control etc.
- •12-MONTH Worry-Free Return And Refund Policy, Buy with Confidence!

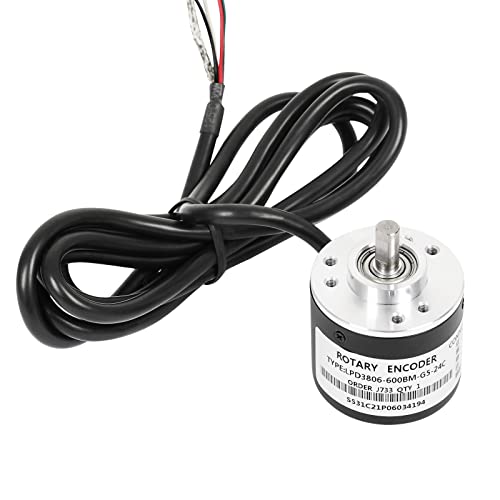

Signswise Incremental Optical Rotary Encoder for Arduino 360P/R Wide Voltage Power Supply DC 5-24V 6mm Shaft Quadrature
List Price: $36.84$33.16DEALYou Save: $3.68 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
Customer Reviews
Reviews sourced from verified Amazon purchasers4.7
out of 5
Based on 10 reviews
5★
90%
4★
10%
3★
0%
2★
0%
1★
0%
5V operation is hit and miss
2BCFrankReade✓ Verified Purchase•September 10, 2023
Learned this the hard way - Not always reliable on 5V. We use a lot of these, and we always do 12V nowadays. The nice part though, is that the output is (well...can't actually promise this) is open collector, so you can use a pull-up resistor to your controller's voltage, which might be 5V, and run your inputs like that while still powering it by 12V. Check your individual encoder though, because only god knows how the PCB inside is configured, or you..if you open it or measure the outputs on a meter.
Very Smooth
Rob✓ Verified Purchase•August 28, 2023
This is a very nice rotary encoder. I purchased this, along with a beautiful machined aluminum knob, for a hobby project. For quick breadboard projects it is not as convenient as a cheap rotary encoder you can plug into a breadboard, but the feel of this encoder makes it well worth the slight inconvenience. I have used it for Arduino and FPGA projects and will always use this rotary encoder over the cheap ones.
If I could suggest one improvement it would be to add pin headers to the power and IO pins. It was easy enough to add these myself. Attaching pin headers makes it easy to use with a breadboard or Arduino header.
If I could suggest one improvement it would be to add pin headers to the power and IO pins. It was easy enough to add these myself. Attaching pin headers makes it easy to use with a breadboard or Arduino header.
Excellent
XeroxPARC✓ Verified Purchase•August 23, 2023
Love it. Should have picked up some of these years ago...will be bookmarking for the future.
Easy to integrate with an Arduino following the instructions from other reviewers/answerers on this page.
I accidentally dropped the small wooden box I mounted this in from about 36" onto carpet. Still works fine.
Easy to integrate with an Arduino following the instructions from other reviewers/answerers on this page.
I accidentally dropped the small wooden box I mounted this in from about 36" onto carpet. Still works fine.
Accurate on Arduino 5V - missing pulses fixed in code
JC✓ Verified Purchase•August 2, 2023
I used the example code in the questions/answers section of this page, and the arduino was missing pulses. Sometimes the counts would sporadically go backwards. Slow revolutions would give hundreds of counts per revolution, but fast revolutions would give 30 counts.
I found a code example on github using attachInterrupt which fixed the missing pulses. Reference and code attached in picture along with a simple wiring diagram. Now I get 1200 counts per revolution repeatably (due to counting both A and B phase changes).
I've tested this for a day and am pleased with the results so far. I am adding this into my project shortly and will update after more use.
I found a code example on github using attachInterrupt which fixed the missing pulses. Reference and code attached in picture along with a simple wiring diagram. Now I get 1200 counts per revolution repeatably (due to counting both A and B phase changes).
I've tested this for a day and am pleased with the results so far. I am adding this into my project shortly and will update after more use.
great encoder for the price
linux-works✓ Verified Purchase•July 8, 2023
The media could not be loaded. I am using this with an arduino DIY preamp as a volume control (of all things).
there is nothing else like this on the market; its really good and now, its affordable.
you need 4.7k pullups on the A and B lines. give the unit 5v and its normal quadrature after that.
see my photo and video for a demo of what it can be like if you integrate this part into your system.
there is nothing else like this on the market; its really good and now, its affordable.
you need 4.7k pullups on the A and B lines. give the unit 5v and its normal quadrature after that.
see my photo and video for a demo of what it can be like if you integrate this part into your system.
