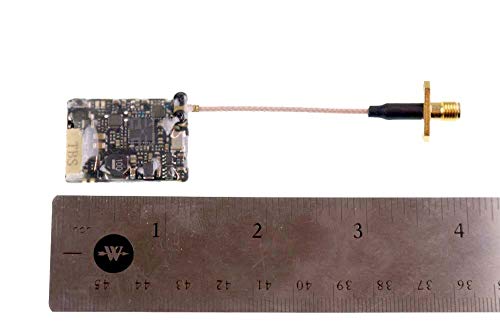

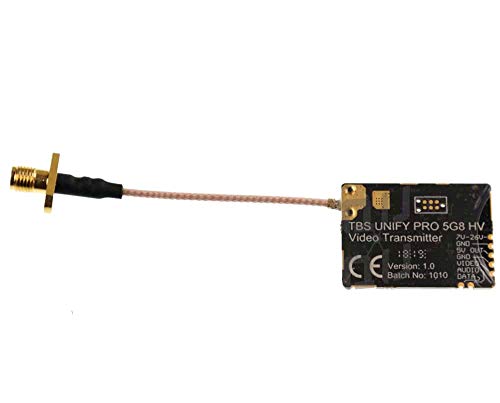

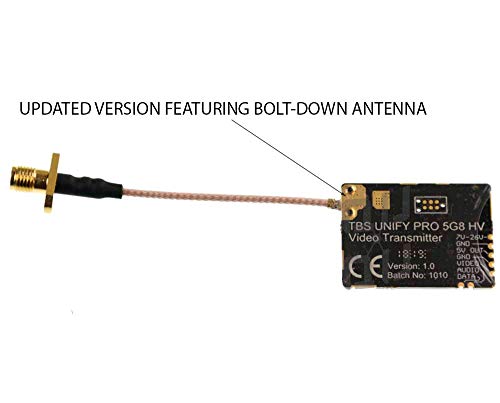

Team BlackSheep TBS UNIFY PRO 5G8 HV - RACE (SMA) Video Transmitter
Key features
- •Team BlackSheep
- •TBS UNIFY PRO 5G8 HV - RACE (SMA)
- •Smallest, lightest video transmitter on the market
- •2-6S input power supported
- •25mW / 200mW power settings
- •Ultra-clean transmission (up to 16 pilots at once!)
- •PitMode - power up your quad during a race
- •Easy OSD, FC and RC channel changes, with fallback button menu
- •Robust RF amplifier allows powering up without antenna for hours!
- •Clean powerup and video switching
- •CE certified
- •Operating Voltage: 2S - 6S
- •Supply current: 600mA
- •Operating Temperature: watch for normal airflow
- •Audio carrier Frequency: 6.5 MHz
- •Video Input Impedance: 75 Ohm
- •Weight: 5g (with SMA, without antenna)
- •Antenna Connector: SMA Female Socket with screw mounting holes, U.FL to VTx
- •Video Format: NTSC/PAL
- •Output Power: 13dBm (25mW), 23dBm (200mW)

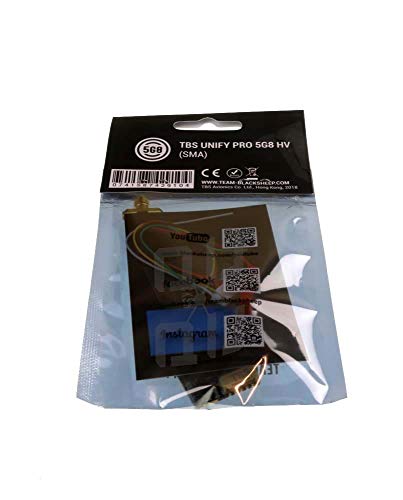

- •TBS UNIFY 5G8 Video transmitter
- •Video Transmitter pigtail cable
- •TBS UNIFY Pro Manual
BrandTeam Blacksheep
Team BlackSheep TBS UNIFY PRO 5G8 HV - RACE (SMA) Video Transmitter
List Price: $80.43$72.39DEALYou Save: $8.04 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
Customer Reviews
Reviews sourced from verified Amazon purchasers3.8
out of 5
Based on 10 reviews
5★
80%
4★
0%
3★
0%
2★
0%
1★
20%
SIMPLY THE BEST VTX and TESTED AND TRIED!!!!! A+++
Turbo Reviews•February 16, 2018
Team BlackSheep TBS UNIFY PRO 5G8 HV (SMA) Video Transmitter by Team Blacksheep
You Simply can't beat the TBS UNIFY receivers!!! PERIOD! This UNIFY PRO is great and especially for racing or where range isn't a huge issue it does get great range but is only 200mw and so the UNIFY PRO non HV model does have more range with its 600mw output and if you so desire can put it up to 800mw!! Although I never have put one over 600 haven't needed to!!?? The HV version is great because it can take battery voltage as a 4S lipo even without a step down and also has a power 5V out for the FPV camera to be powered by!! Where as the UNIFY PRO non HV model can only be powered by 5V and has NO power out for the camera. Just the best you can get here in my opinion!! Recommend!! Thanks, Turbo Reviews.
You Simply can't beat the TBS UNIFY receivers!!! PERIOD! This UNIFY PRO is great and especially for racing or where range isn't a huge issue it does get great range but is only 200mw and so the UNIFY PRO non HV model does have more range with its 600mw output and if you so desire can put it up to 800mw!! Although I never have put one over 600 haven't needed to!!?? The HV version is great because it can take battery voltage as a 4S lipo even without a step down and also has a power 5V out for the FPV camera to be powered by!! Where as the UNIFY PRO non HV model can only be powered by 5V and has NO power out for the camera. Just the best you can get here in my opinion!! Recommend!! Thanks, Turbo Reviews.
Five Stars
william Holmes•December 13, 2017
amazing
One Star
Michael•October 2, 2017
Make sure its the correct version
Waste of money!
Customer•September 25, 2017
The u.fl connector on the board came off when replacing the antenna. I understand that the antenna can come off, but the part soldered to the board shouldn't come off the board. The transmitter worked but for the price it should have a better build quality.
great VTX
Raptor•September 23, 2017
this thing is awesome. it works really well and i love the smart audio feature.
