Key features

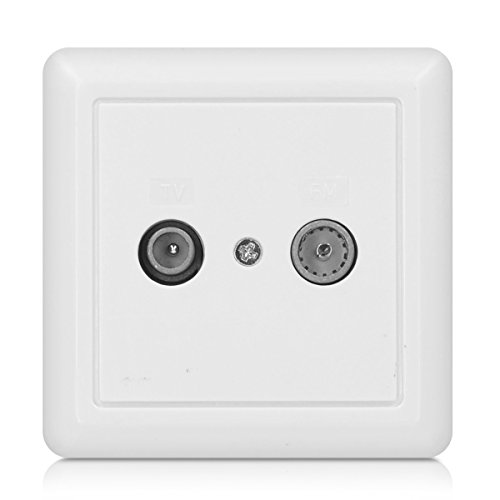

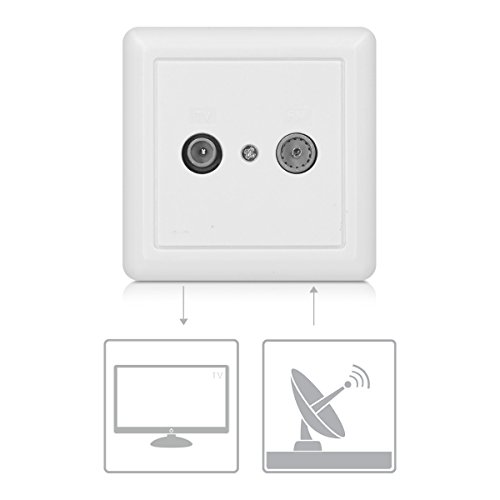

• •HOME ENTERTAINMENT: The kwmobile double aerial socket lets you connect radios and TV sets quickly and easily. It comes with a white wall plate and screws for easy mounting.
• •BACK CHANNEL: The SSD 2-10 SAT plug with 10 dB connection loss is suitable for back channel in connection with a TV, to which a cable modem can be easily connected. The box can be inserted as a junction box, wall box or with mounting frame.
• •INDIVIDUAL USE: The antenna socket can be used, among others, as a single cable system. It also serves as an alternative box in a conventional TV distribution. Suitable for mounting under plaster.
• •TV CABLE: The coaxial connector is made with a coaxial cable input and output so that you can use the wall socket for a single cable solution.
• •ONE FOR ALL: Have multimedia connection and distribution throughout the house. The kwmobile wall socket can be used as a flush-mounted socket, cavity wall socket or as a surface-mounted socket with surface-mounted frame.
• •The connection loss of the wall plug is max. 2 dB and the insertion loss is 2-5 dB.
• •The delivery includes the double aerial socket, a removable surface mounted frame and wall plate in white. The plate is labeled accordingly so that you know where to connect which coaxial cable.
• •TV (IEC-M) 174-862 / 5-65 MHz (back channel compatible), radio (IEC-F) 87.5-125 MHz

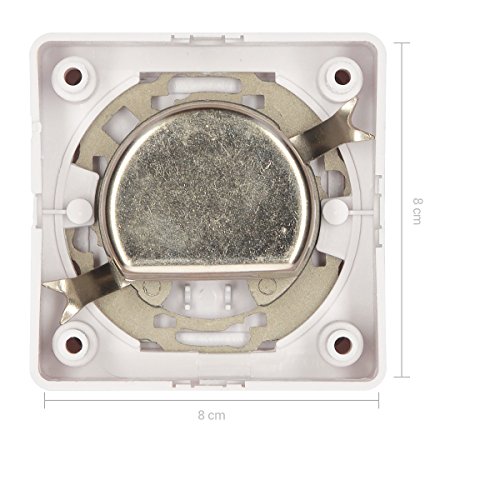

• •As the screws are already included, you only need a screwdriver to fix the aerial socket to the wall. A screw in the cover is used for final assembly of the housing. Two more screws, which are already pre-tightened in the wall plate, must be screwed to the wall outlet.
• •Our extensive range of products also includes many other electronic devices, accessories and useful and beautiful articles from the Home & Living division. Have a look - it's worth it!
• •Frequency range: 5 - 2400 MHz
• •Return channel compatible: 5 - 65 MHz
• •Stitch/end box 1 dB
• •1x kwmobile TV/radio aerial double socket
• •1x white wall plate
• •2x fixing screws
• •1x housing screws
