Key features

• •CALIBRATED WAVE LENGTH (nm) AND WIDE MEASUREMENT RANGE - Standard wave length(nm): 850/980/1300/1310/1490/1550/1625nm; Measurement range: -70~+10 dBm
• •650nm VISUAL FAULT FINDER - For fiber tracing, fiber routing and continuity checking
• •30MW LIGHT SOURCE - Can measure the distance is up to 30 kilometers

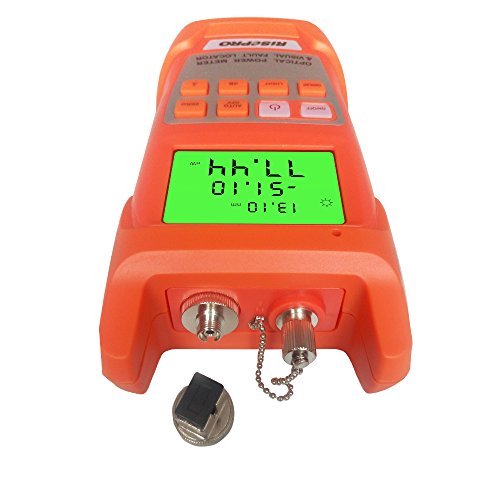

• •UNIQUE FC/SC/ST UNIVERSAL PORT, NO COMPLEX CONVERSATION - This meter can fit for FC/ST/SC interface
• •mW AND dBm - Linear indicators (mW) and non-linear indicators (dBm) display in one screen

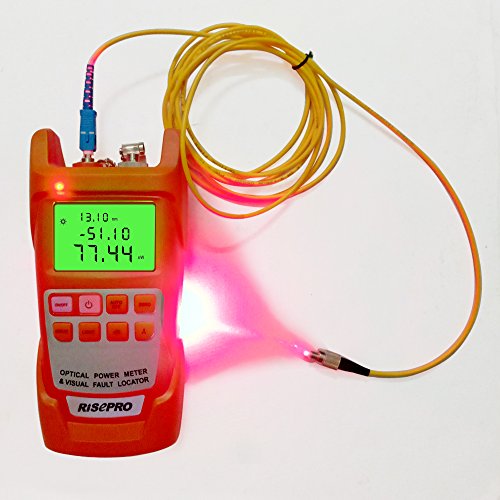

• •2-in-1 Optical power meter and 30mW Visual Fault Locator
• •Fit for FC/ST/SC interface
• •Does not support 1.5LC interface, need extra adaptor
• •650nm Visual Fault Finder for fiber tracing, fiber routing and continuity checking
• •Finding the breakpoint, poor connections, bending or cracking in fiber optic cables
• •Finding the faults of OTDR
• •Universal connector
• •Operates either in CW or Pulsed
• •Light output distance up to 30KM
• •Portable design, easy to carry
• •Self calibration by user

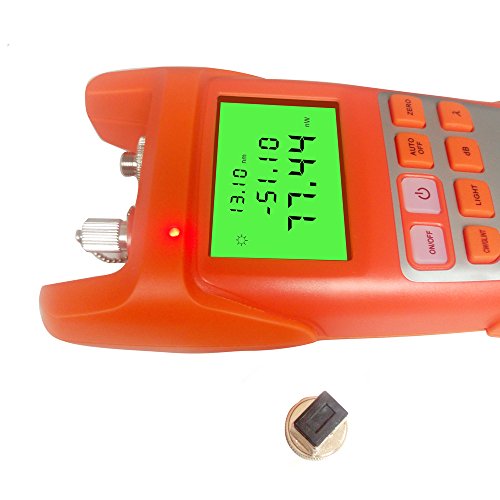

• •Linear indicators (mW) and non-linear indicators (dBm) display in one screen
• •Unique FC/SC/ST universal port, no complex conversion
• •Optional auto power-off ability
• •Backlight ON/OFF

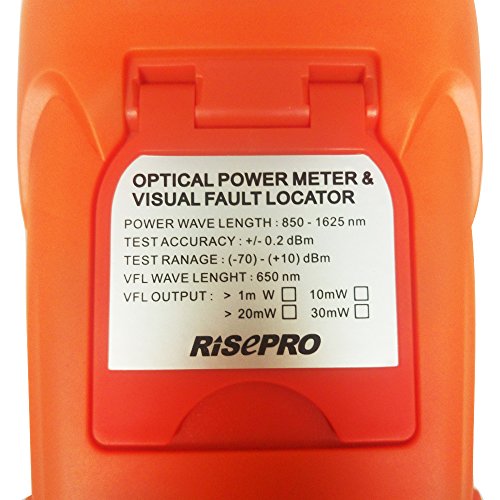

• •Measurement range: -70~+10 dBm
• •Type of probe: InGaAs
• •Range of wave length: 850nm~1625nm
• •Standard wave length(nm): 50/ 980/ 1300/ 1310/ 1490/ 1550/ 1625nm
• •Resolution: Linear indication:0.1% Logarithmic indication: 0.01dBm
• •Working temperature(°C): -10~+60
• •Storage temperature(°C): -25~+70
• •Auto power-off time(min): 10
• •Continuous working hours: At least 40 hours
• •Red light wavelength: 650nm
• •Emitter Type: FP-LD lights
• •Output power: 30mW
• •Output distance: 30KM
• •Connector: 2.5mm universal adapter
• •Working mode: Both CW and Pules available
• •Dimensions(mm): 190x90x35
• •Weight(g): 275g
• •Storage temperature: -20~+70 °C
• •Power: 2pcs AA Alkaline battery (INCLUDED)
• •1 x All in One Optical Multimeter
• •2 x AA Alkaline Battery
