Key features

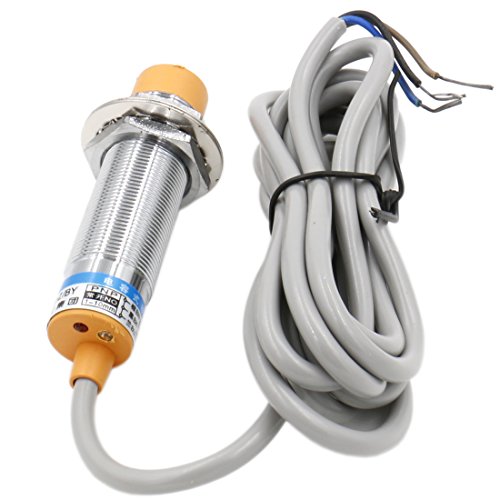

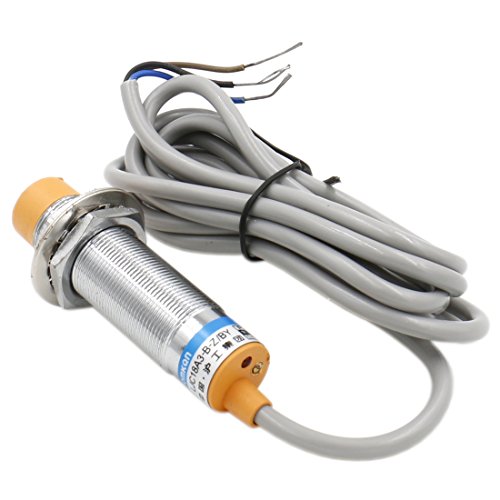

• •Product Name : Capacitive Proximity Switch; Model : LJC18A3-B-Z/BY; Wire Type : DC 3 Wire Type (Brown, Black, Blue); Switch Appearance Type : Cylinder Type
• •Theory : Capacitance Sensor; Output Type : PNP NO(Normal Open); Diameter of Head : 18mm; Detecting Distance : 1-10mm
• •Detecting Object : Metal or Nonmetal Material; Supply Voltage : DC 6-36V; Current Output : 300mA; Response Frequency : 100Hz
• •Operating Temperature : -25 to +65 Celsuis (Non-freezing Condition); Size : 7.5 x 3cm / 3"x 1.2"(L*Max. Dia); Cable Length : 120cm/47"; External Material : Plastic, Alloy
• •Net Weight : 114g; Package Content : 1 x Capacitive Proximity Switch
• •It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.
• •When proximity switch is close to some target object, it will send out control signal.
• •As it is capacitive type proximity switch, its detecting object target is not limited to only conductor, but also liquid and even powder things, like plastic, water, glass, oil, etc.
• •It is widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect.
