CGOLDENWALL RW-ST01A Load Cell Sensor Amplifier Transmitter Strain Gauge Amplifier Transducer Sensitivity 2.0mV/V±10% (Output Signal:0-10V)
Key features
- •Description: Enclosure:ABS Net Weight:90g

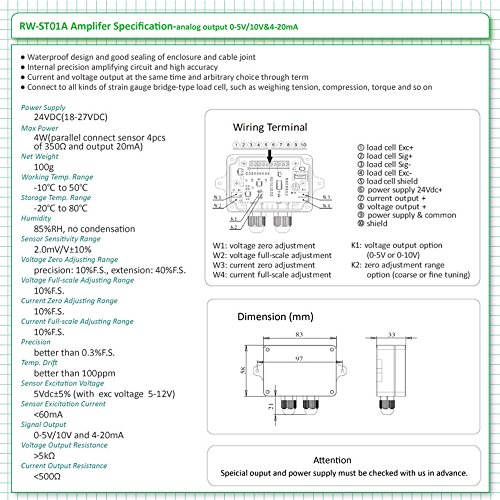

- •Specification:Applicable Sensitivity:1.0 or 2.0 mV/V±10% Input Signal:mV Output Signal:0-5V/10V&4-20mA Accuracy:0.3% Power Supply:DC24V Applicable Load Cell Excitation Voltage:5-12V Load Capacity:Parallel Connection of 350Ω Load cell 4 pcs at most Temperature Coefficient:Better than 100ppm
- •Working Environment:Operating Temperature Range:0-50ºC Enclosure:IP65 Installation Mode:Enclosure Fixed Mounting
- •Feature:Waterproof design and good sealing 24 bit ADC resolution Digital filter inside Direct output ADC result RS232 or RS485 interface Simple communication command Excellent temperature stability Application: All full bridge stain gauge load cells for weighing, tension, compression, torque, etc.
BrandCGOLDENWALL
CGOLDENWALL RW-ST01A Load Cell Sensor Amplifier Transmitter Strain Gauge Amplifier Transducer Sensitivity 2.0mV/V±10% (Output Signal:0-10V)
List Price: $187.70$168.93DEALYou Save: $18.77 (10%)
