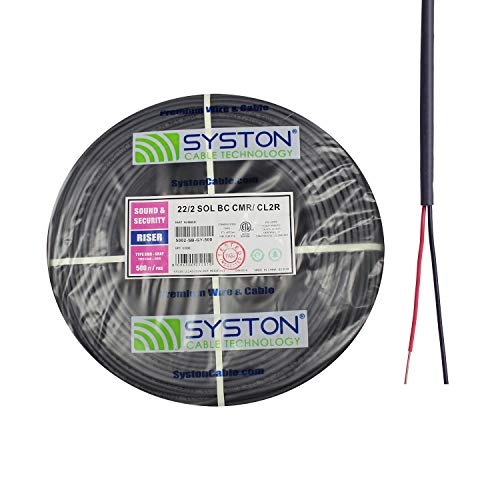

22 AWG 2 Conductor Security Control Cable 500ft, Solid Pure Copper Low Voltage 300V, CL3/CMR Outdoor/Indoor Sun Resistant Jacket for Low Voltage Circuit Systems, Gray by Syston Cable

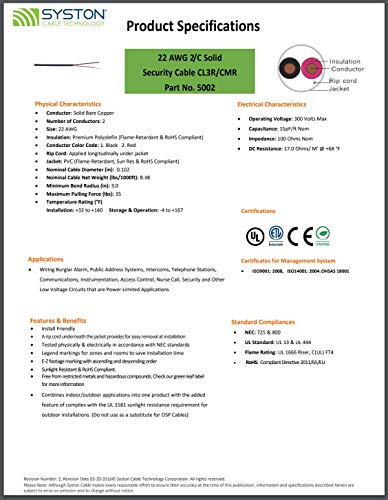

Key features
- •Premium UL Listed 500ft 22AWG CL3 / CMR Security and Control Cable for Outdoor applications with E-Z footage markings for zones and rooms.
- •For Use with Applications for Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications
- •Tested Physically and electrically in accordance with NEC Standards
- •Combines indoor/outdoor applications into one product with the added feature of complies with the UL 1581 sunlight resistance requirement for outdoor installations. (Do not use as a substitute for OSP Cables)
- •Insulation: Premium Polyolefin Flame-Retardant, Sun Resistant and RoHS Compliant
- •Conductor: Solid Bare Copper
- •Number of Conductors: 2
- •Size: 22 AWG
- •Insulation: Premium Polyolefin (Flame-Retardant & RoHS Compliant)
- •Conductor Color Code: 1. Black 2. Red

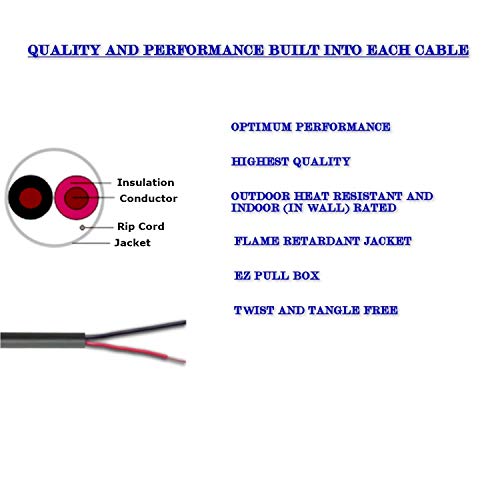

- •Rip Cord: Applied longitudinally under jacket
- •Jacket: PVC (Flame-Retardant, Sun Res & RoHS Compliant)
- •Nominal Cable Diameter (in): 0.102
- •Nominal Cable Net Weight (lbs/1000 ft): 8.38
- •Minimum Bend Radius (in): 3.0
- •Maximum Pulling Force (lbs): 35
- •Temperature Rating (°F): Installation: +32 to +140 Storage & Operation: -4 to +167
- •ISO9001: 2008, ISO14001: 2004, OHSAS 18001
- •NEC: 725 & 800
- •UL Standard: UL 13 & UL 444
- •Flame Rating: UL 1666 Riser, C(UL) FT4
- •RoHS: Compliant Directive 2011/65/EU
- •Operating Voltage: 300 Volts Max
- •Capacitance: 15 pF/ft Nom
- •Impedance: 100 Ohms Nom
- •DC Resistance: 17.0 Ohms/M' @ +68 °F
22 AWG 2 Conductor Security Control Cable 500ft, Solid Pure Copper Low Voltage 300V, CL3/CMR Outdoor/Indoor Sun Resistant Jacket for Low Voltage Circuit Systems, Gray by Syston Cable
