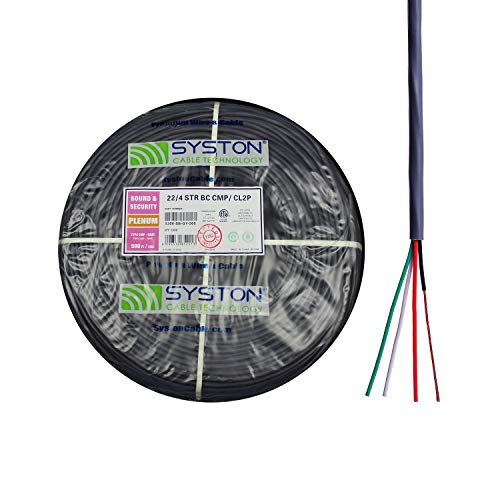

22/4 22 AWG 4 Stranded Pure Copper Conductors Unshielded Security Control Alarm Cable, UL/ETL CMP/CL3P Gray 500ft Speed Bag
Key features
- •Applications: Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications
- •Install Friendly. A rip cord underneath the jacket provides for easy removal at installation. Legend markings for zones and rooms to save installation time. E-Z footage marking with ascending and descending order.
- •Sunlight Resistant & RoHS. Free from restricted metals and hazardous compounds. Check our green leaf label for more information
- •Combines indoor/outdoor applications into one product with the added feature of complies with the UL 1581 sunlight resistance requirement for outdoor installations. (Do not use as a substitute for OSP Cables)
- •Lifetime Warranty
- •Conductor: Stranded Bare Copper
- •Number of Conductors: 4
- •Size: 22 AWG
- •Strand Count: 7/30 AWG Stranded
- •Insulation: Plenum Polyolefin (Low Smoke, Flame-Retardant & RoHS Compliant)
- •Conductor Color Code: 1. Black 2. Red 3. White 4. Green
- •Rip Cord: Applied longitudinally under jacket
- •Jacket: Plenum PVC (Low-Smoke, Flame-Retardant & RoHS Compliant)
- •Nominal Cable Diameter (in): 0.126
- •Nominal Cable Net Weight (lbs/1000 ft): 16.76
- •Minimum Bend Radius (in): 3.0
- •Maximum Pulling Force (lbs): 35
- •Temperature Rating (°F): Installation: +32 to +140 Storage & Operation: -4 to +167
- •ISO9001: 2008, ISO14001: 2004, OHSAS 18001
- •NEC: 725 & 800
- •UL Standard: UL 13 & UL 444
- •Flame Rating: UL 910 Plenum, c(UL) FT6
- •RoHS: Compliant Directive 2011/65/EU
- •Operating Voltage: 300 Volts Max
- •Capacitance: 24pF/ft Nom
- •Impedance: 74 Ohms Nom
- •DC Resistance: 16.9 Ohms/M' @ +68 °F
