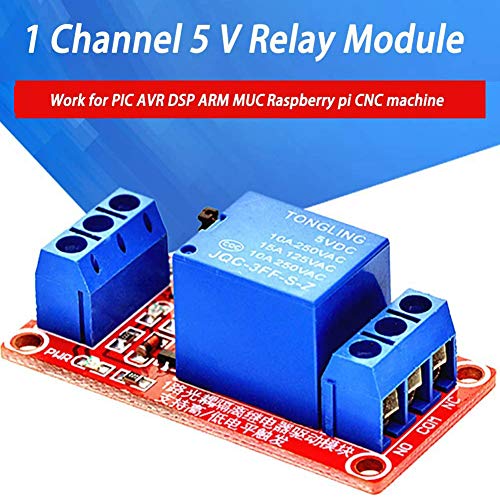

Youngneer 5v Relay Board Relay Module 1 Channel Opto-Isolated High or Low Level Trigger

Key features

•【1 Channel Relay Module】- This Relay Board provides a single relay that can be controlled by any 5V digital output from your microcontroller.
•【Main Specification】- Peak Load of NO Connector: AC125~250V/10A, DC28~30V/10A; Trigger Current: 5mA; 4pcs * 3.1 mm Fixed Bolt Hole
•【Adopted SMD Optocoupler Isolation】- The isolation circuit prevent damages to I / O port by relay switch current.
•【Wide Application】- These 5v relay board works well with Arduino/ ARM /PIC /AVR /MCU/Raspberry/CNC machine/ PS4 etc.

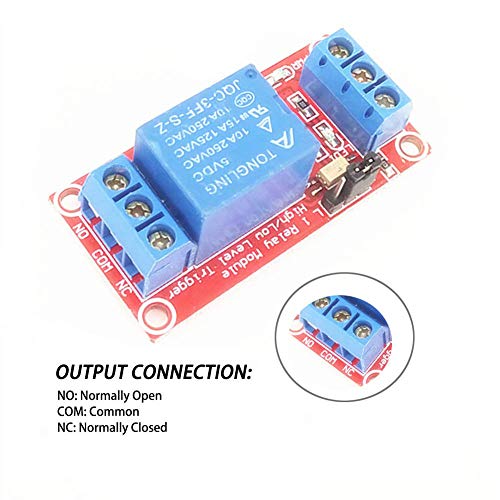

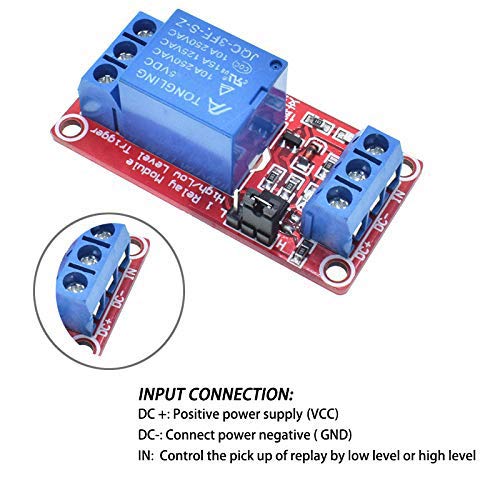

•【Humanization Design On Interfaces】- All interfaces can be directly wired out through the terminals.

BrandYoungneer

CategorySolid State Relays

Size5v relay 1 Channel

Color5v Relay 1 Channel

Youngneer 5v Relay Board Relay Module 1 Channel Opto-Isolated High or Low Level Trigger

List Price: $23.26$20.93DEALYou Save: $2.33 (10%)

Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
