Digital Vibration Meter Piezoelectric Sensor 10Hz~10kHz Frequency, Acceleration Displacement Measurement Gauge for Analyzing The Imbalance and Deflecting of Moving Machinery
Key features
- •Parameters: 3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement.
- •Measurement Range: Displacement: 0.001~4.000mm Equivalent Peak-Peak; 0.04~160.0 mi / Acceleration: 0.1~400.0 m/s² Equivalent Peak; 0.3~1312 ft/s²; 0.0~40g / Velocity: 0.01~400.0 mm/s True RMS; 0.004~16.00 inch/s
- •Frequency Range: Displacement: 10Hz. ~ 1kHz. / Acceleration: 10Hz. ~ 10kHz / Velocity:10Hz. ~1kHz.
- •Designed for easy on-site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes
- •In accordance with ISO 2954, GB13823.3, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines
- •Uses piezoelectric acceleration transducer to convert vibration signal
- •High-Quality accelerometer for accurate and repeatable measurements
- •3 accelerators for 3-channel vibration measurement
- •Bearing condition monitoring function

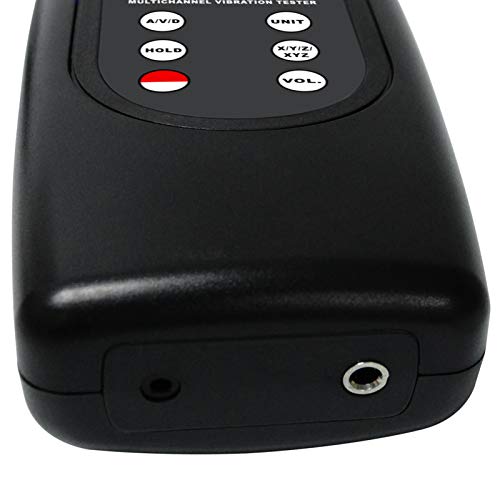

- •AC output socket for headphones and recording
- •USB data output to connect with PC (Cable & Software is not included in the set)
- •Bluetooth data output choice (adapter and software is not included in the set)

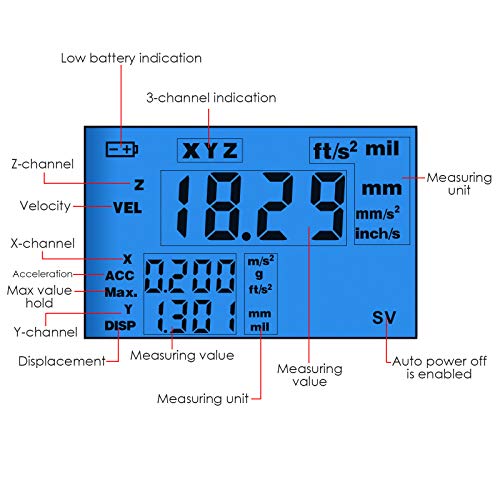

- •Display: 4 digit LCD backlit
- •Vibration Sensor: Piezoelectric accelerometer
- •Vibration: any one channel of X , Y, Z or 3 channel of XYZ
- •Measurement Range:Displacement: 0.001~4.000mm Equivalent Peak-Peak; 0.04~160.0 mil
- •Acceleration: 0.1~400.0 m/s² Equivalent Peak; 0.3~1312 ft/s²; 0.0~40g
- •Velocity: 0.01~400.0 mm/s True RMS; 0.004~16.00 inch/s
- •Frequency Range:Displacement: 10Hz. ~ 1kHz.
- •Acceleration: 10Hz. ~ 10kHz
- •Velocity:10Hz. ~1kHz.
- •Accuracy: ±(5%n+2) digits
- •Metric/ Imperial conversion
- •Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
- •PC interface: RS232C ( Cable and software is not included)
- •Operating conditions:Temperature: 0~50°C
- •Humidity: below 95% RH
- •Power supply: 4 x 1.5vAAA (UM-4)Battery

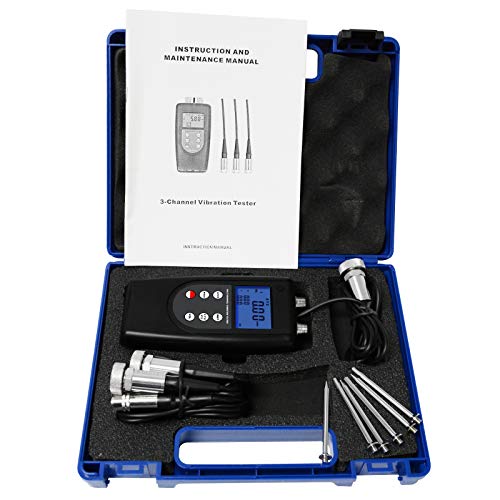

- •1 x Vibration Meter (Main Unit)

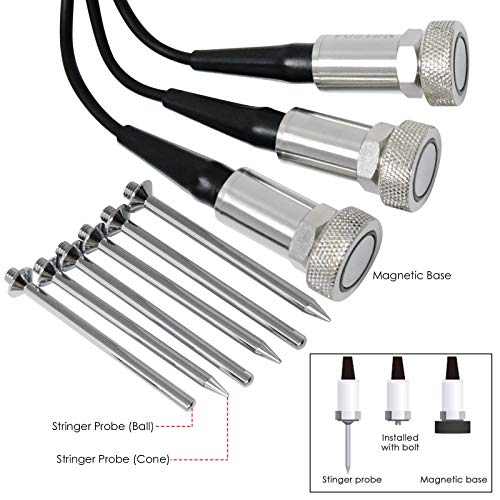

- •3 x Piezoelectric Transducers Sensor
- •3 x Powerful Rare Earth Magnet
- •3 x Stinger Probe (Cone)
- •3 x Stinger Probe (Ball)
- •1 x Carrying Case
- •1 x English Instruction Manual
BrandLandtek
CategoryShock & Vibration Control
Digital Vibration Meter Piezoelectric Sensor 10Hz~10kHz Frequency, Acceleration Displacement Measurement Gauge for Analyzing The Imbalance and Deflecting of Moving Machinery
List Price: $784.23$705.81DEALYou Save: $78.42 (10%)
