Youngneer 12v Relay Board Raspberry Arduino Relay Module 1 Channel Opto-Isolated High or Low Level Trigger
Key features
- •【12V 1 Channel Relay Module】- This Relay Board provides a single relay that can be controlled by any12V digital output from your microcontroller.
- •【Main Specification】- Peak Load of NO Connector: AC125~250V/10A, DC28~30V/10A; Trigger Current: 5mA;The Module Operating Voltage:12V; 4pcs * 3.1 mm Fixed Bolt Hole.

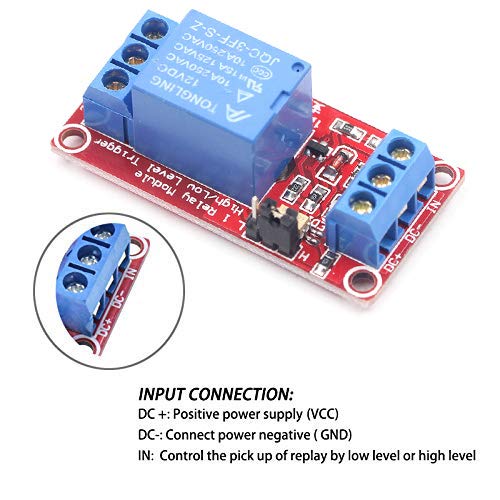

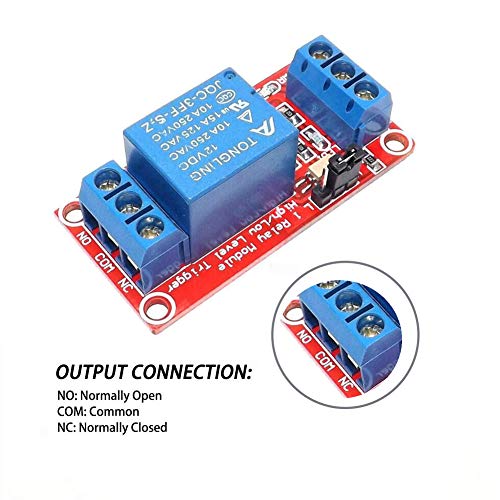

- •【Adopted SMD Optocoupler Isolation& jumper Set】- The isolation circuit prevent damages to I / O port by relay switch current.The module has a jumper so you can set rather the unit state changes with high or low signal. Has screw terminals for relay (NC,C,NO) and for input; Coil +, coil - and trigger.

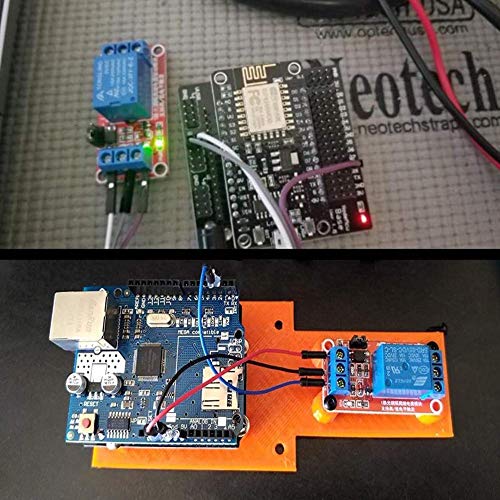

- •【Wide Application】-These 12v relay board works well with Arduino/ ARM /PIC /AVR /MCU/Raspberry/CNC machine/ PS4 etc.
- •【Humanization Design On Interfaces】- All interfaces can be directly wired out through the terminals.Fault-tolerant design;fault-tolerant design,even if the control line is broken, the relay will not operate.
Youngneer 12v Relay Board Raspberry Arduino Relay Module 1 Channel Opto-Isolated High or Low Level Trigger
List Price: $23.26$20.93DEALYou Save: $2.33 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
