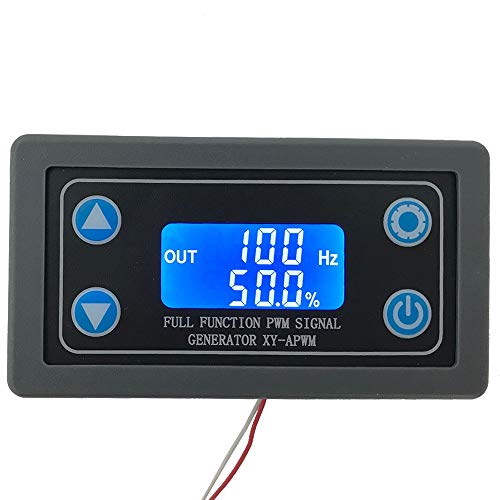

PEMENOL Signal Generator, DC 3.5-12V Adjustable PWM Pulse Frequency Duty Cycle 1Hz-150KHz Motor Controller LCD Display
Key features

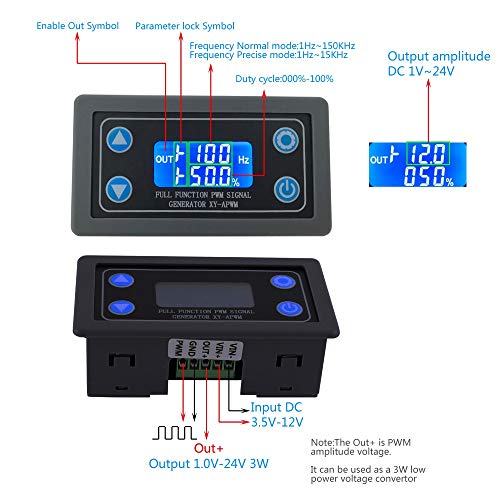

- •Supply voltage: DC3.5~12V, output voltage: DC1.0V~24.0V, power: 3W, frequency range: 1Hz~150KHz.

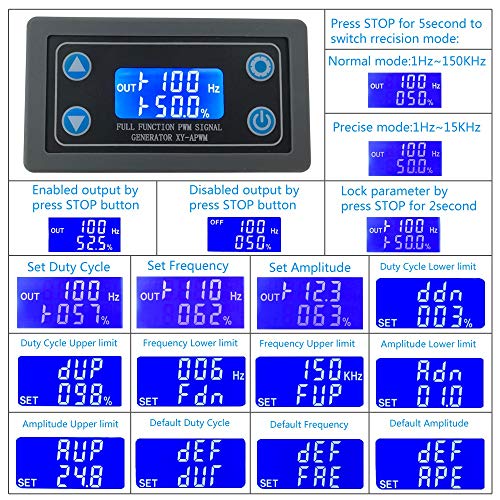

- •The duty cycle, frequency, and output voltage can be adjusted, and both maximum and minimum values can be set.

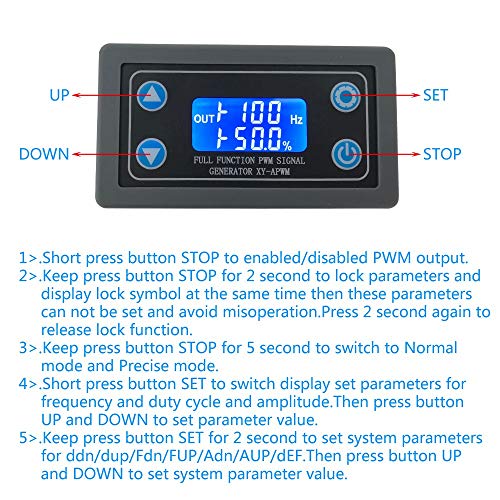

- •With locking function to prevent misoperation.
- •Application: Used as a square wave signal generator; Generates pulses available to the MCU; Used as PWM, adjusts illumination, motor speed control.
BrandPEMENOL
CategoryFunction Generators
PEMENOL Signal Generator, DC 3.5-12V Adjustable PWM Pulse Frequency Duty Cycle 1Hz-150KHz Motor Controller LCD Display
List Price: $25.20$22.68DEALYou Save: $2.52 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (2)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
Customer Reviews
Reviews sourced from verified Amazon purchasers4.7
out of 5
Based on 2 reviews
5★
100%
4★
0%
3★
0%
2★
0%
1★
0%
Very cool cheap little motor drive
Mr Person✓ Verified Purchase•June 15, 2023
So I don't claim to fully understand how this stuff works, but I am taking a motor drive course next semester, and this is a cool little thing for me to play around with for now. It seems relatively accurate; the PWM signal looks clean on my old oscilloscope, and my frequency counter shows that it is outputting what it claims to be.
This doesn't have fancy features like soft starting or stopping, but for the price, I didn't expect that. I took some pictures and you can see that both frequency and duty cycle are very close to being spot on.
I built 2 little circuits using a mosfet to switch the OUT+ line using the PWM signal on the gate and it worked perfectly. The first one is just an LED that can be dimmed or brightened, and then I hooked up a little DC motor. Out of curiosity I looked at the signal going to the motor with and without a capacitor attached, and you can see how cleanly the circuit is switching the motor on and off.
Over all this thing is really fun for someone like me that tinkers in electronics, and I would highly recommend it to anyone that wants to teach themselves something about motor drives or PWM signals.
This doesn't have fancy features like soft starting or stopping, but for the price, I didn't expect that. I took some pictures and you can see that both frequency and duty cycle are very close to being spot on.
I built 2 little circuits using a mosfet to switch the OUT+ line using the PWM signal on the gate and it worked perfectly. The first one is just an LED that can be dimmed or brightened, and then I hooked up a little DC motor. Out of curiosity I looked at the signal going to the motor with and without a capacitor attached, and you can see how cleanly the circuit is switching the motor on and off.
Over all this thing is really fun for someone like me that tinkers in electronics, and I would highly recommend it to anyone that wants to teach themselves something about motor drives or PWM signals.
Replaces high end lab equipment
Sean✓ Verified Purchase•May 17, 2023

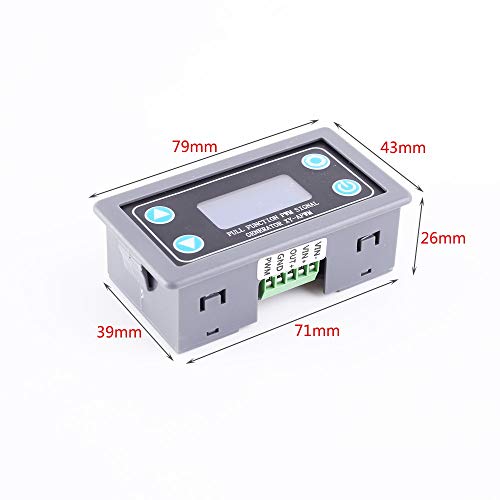

I've been using signal generators in the lab for multiple PWM type applications. This is a very inexpensive and space saving replacement that provides all the functionality I would need for development purposes. The snap in mounting makes it easy to install into a project box where you can connectorize the signals to make your own mini portable signal generator.
