Fulton Precision Miter Gauge with Aluminum Miter Fence with 45 Degree Angled Ends for Maximum Stock Support and a Repetitive Cut Flip Stop
Key features
- •The Fulton Miter Gauge is a high quality, well thought out and economical solution for your table saw cross cutting needs.The Aluminum Miter fence is equally well thought out with its 45 degree ends for unsurpassed workpiece support and its ability to mounted to most any miter gauge. Also included is a handy aluminum flip stop for repetitive angled cuts on your table saw. Together these three items are the perfect compliment to each other for your table saw cutting needs.
- •The .200" thick, adjustable, solid aluminum head is machined with 13 positive stop holes. 1 hole is at 90 degrees while the 6 holes on both sides are at 22.5, 30, 45, 60, 67.5 and 90 degrees. The positive stops are perfect for many woodworking projects as they are the angles that are typically used.To adjust the head you simply loosen the post knob handle, pull the spring loaded indexing pin outward, rotate the head to the desired position, release the pin and lock into place.
- •The head is mounted to a solid steel miter bar that measure 18" in length and is .353" thick by .730" wide. Standard miter slots (not Craftsman or Sears brands) are 3/4" x 3/8" with a 1/8" "T" slot (slight variances from brand to brand) running the length on the bottom of the slot. The steel miter bar is equipped with a metal, removable retaining disc that measures 7/8" in diameter and is just shy of 1/8" to fit into to the "T" slot to prevent accidental lifting when feeding your stock through.
- •Made from a single piece of extruded aluminum, this precision miter gauge fence is not only durable, its accurate and saves setup time. The fence is designed to be used with most any miter gauge with its off-set mounting track on the back of the fence. The off-set track allows you to flip the fence for lower profile miter gauge mounts and flip back for standard height miter gauges. The fence can be mounted to older miter gauges by adding a wooden block mount with wooden screws if necessary.

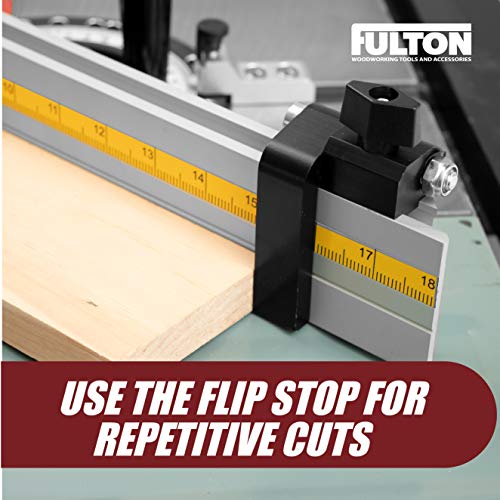

- •Both ends of the fence are cut at exactly 45 degrees. This allows you to position the fence extra close to the saw blade (with the power turned off) so you have even more control over the workpiece you are cutting. The fence comes with a flip stop that makes repetitive cuts a breeze. When not in use the flip stop can be flipped up and out of the way. Also include are two sticky back measuring tapes. 1 tape is left to right reading and the other is right to left reading.
Fulton Precision Miter Gauge with Aluminum Miter Fence with 45 Degree Angled Ends for Maximum Stock Support and a Repetitive Cut Flip Stop
List Price: $136.76$123.08DEALYou Save: $13.68 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 24, 2026In Stock (3)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
Customer Reviews
Reviews sourced from verified Amazon purchasers4.6
out of 5
Based on 10 reviews
5★
70%
4★
30%
3★
0%
2★
0%
1★
0%
Perfect
Lindsay✓ Verified Purchase•October 17, 2023
Ours came missing the setting bits, but they had a card in it to connect of that was the case and they sent replacement for it right away. Other than that everything is great. My husband was actually very happy with it. Likes the settings and that it holds on the wood great. This is a good one. Larger and more stable then the small one that came with the table saw
Good design overall but required some tuning.
John✓ Verified Purchase•October 6, 2023
I really like the pre-drilled holes for common angles, and the process for adjusting is simple. I did have to loosen up and re-calibrate the miter gauge because it was about a degree off as shown in the pictures. That seems like an obvious mistake on the part of the QA department. The fence is a great addition to the standard miter gauge, but the plastic clips don't fit flat in the channel on the bottom of the fence, so I took them back out. They were causing the fence to sit at an angle relative to the table. They don't seem necessary at all, so not a big loss. Don't forget to adjust the spring loaded pins down in the bottom rail Don't forget to adjust the spring loaded pins found in the bottom rail of the miter gauge. It'll move much easier in the track if they are all roughly the same tension.
Good Purchase!
PC User✓ Verified Purchase•September 28, 2023
Build quality is excellent; precise; well packaged.
Well made
Melvin F Mayhorn✓ Verified Purchase•September 27, 2023
I did a lot of research before buying this miter gage for my table saw. Fulton brand did not come up in my research but it was rated very high on Amazon. It is made of mostly all metal parts and everything fits together well. It was dead on accurate right out of the box with no adjustment necessary. This miter gage cost much less than other top rated ones but I think it is every bit as good. Highly recommended.
It works like a charm!
Kindle Customer✓ Verified Purchase•September 19, 2023
Excellent miter fence. Tracks smoothly and snugly in the saw table "T" slot. Can adjust the fence to almost touch the blade giving full length support to the wood being cut. First time ever I can now cut accurate mitered cuts that actually fit with no gaps or incorrect angles. Certainly worth the money. I will probably shorten it because it overhangs the end of my table and jabs me in the side when I walk past the saw. That on me! If you have the old cheap miter gauge normally furnished with home-grade saws, you REALLY need this.
