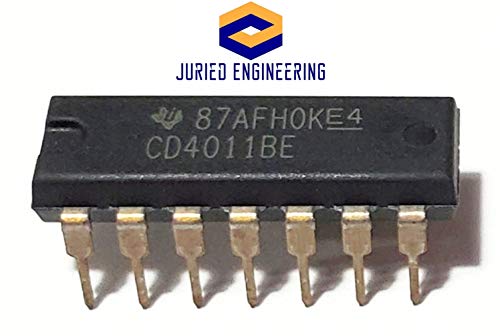

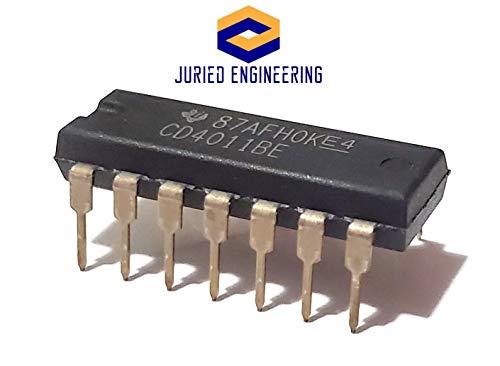

Juried Engineering CD4011BE CD4011B CD4011 CMOS Quad 2-Input NAND Gate Breadboard-Friendly IC DIP-14 (Pack of 10)
Key features
- •The CD4011B Quad 2 Input NAND gates provide the system designer with direct implementation of the NAND function and supplement the existing family of CMOS gates
- •Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
- •Buffered inputs and outputs, 100% tested for quiescent current at 20 V
- •Standardized symmetrical output characteristics, 5-V, 10-V, and 15-V parametric ratings, Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of "B" Series CMOS Devices"
- •Maximum input current of 1 µA at 18 V over-full package temperature range; 100 nA at 18 V and 25°C, Noise margin (over full package temperature range: 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 at VDD = 15 V
Juried Engineering CD4011BE CD4011B CD4011 CMOS Quad 2-Input NAND Gate Breadboard-Friendly IC DIP-14 (Pack of 10)
List Price: $11.48$10.33DEALYou Save: $1.15 (10%)
