Key features

• •Three button switches on module control different relays separately. Supports external connect momentary switches, supports wire connections length up to 10 meters/32 feet, of course, you can also connect longer wires, which need to consider the electrical interference of your application environment.
• •Power supply LED indication, LED indication for per each relay action.
• •Operating voltage DC 10V to 15V, Operating current(max.) 100mA. Three power relay SPDT(single pole double throw) switch output, support maximum voltage 250VAC / 30VDC, maximum current 10 Amp(per relay).

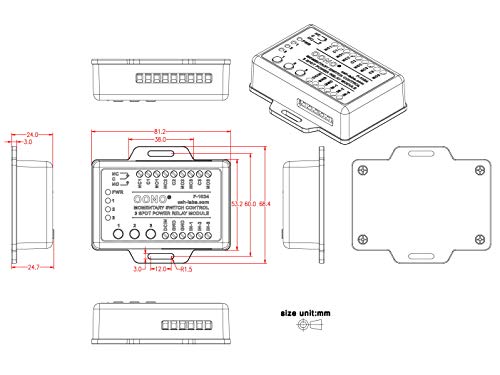

• •ABS plastic enclosure, you can use screw mount to wood board or wall, of course, can also be placed on the desktop. High quality screw terminal block. Pitch 5.0mm/0.197". Wire range 26AWG ~ 12AWG / 2.5mm square.
