Key features

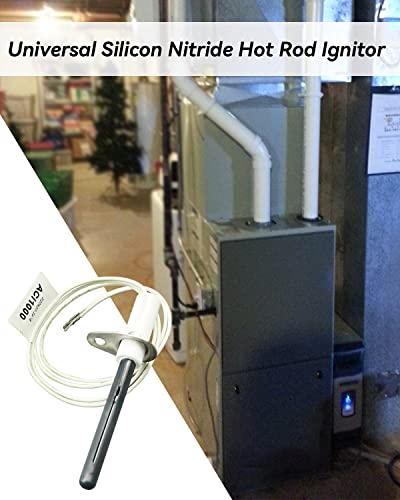

• •Compatible Models: This silicon nitride igniter compatible with Cook Top and Range, Cook Top, Furnace, Gas Ignition, Hot Surface Igniters, Infrared light source, Warm Air Movement, Pool Heaters and Boilers, Process Machinery, Special FX, Water and Parking Heaters, etc.
• •Function: When your stove won't light, igniter not glowing, cracked, burned out, cracked, damp, etc., or the igniter has no continuity, the multimeter is not reading or changing small(if the igniter has continuity, then your multimeter should read between 9 - 17 ohms), and you have to replace the nitride igniter
• •Materials: Consists of stainless steel 304 bright finish bracket, 1.97" nitride heating element, 1.18" ceramic insulator body, non-glazed 95% aluminia polished finish, 15-3/4" 20AWG/ UL 10362 specification 250°C temperature-resistance cable
• •Hot Side Ignitor/Igniter Specification: Rated voltage: AC 120V +/- 10%-15%, 50/60HZ, Cold resistance: 9-17Ω, Rated power: 150W, Temperature at 120v ± 0.5v. 60HZ at 17 sec ≧1180 ℃, Anti-overvoltage ability: igniter energized for 1 minute -132V. Igniter current not allowed to increase from 30 seconds to 60 seconds, the front required to move the stand is 10 lbs, Minimum≧5kgf
• •Easy to Install: Very simple, strong structure, not easy to damage, use high-quality packaging, waterproof and drop-proof, ensures that you can receive the perfect igniter. If you have any questions, you can contact us in time, we will reply within 12 hours
