Key features

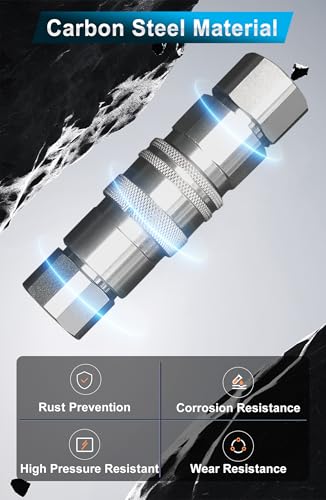

• •Flat Face High Flow Skid Steer Hydraulic Quick Connect Coupler: These high-flow couplers feature a quick push-to-connect operation and prevent hydraulic fluid spillage.Despite their simple push-fit design, users can trust their safety and performance, as tjeu are certified by the Hydraulic Tool Manufacturers Association(HTMA)
• •Hydraulic Coupling Quick Disconnect Couplers Set: Pressure Rating is 5,000 PSI rating(350Bar), Nominal Flow Rate is 12 GPM, Maximum Flow Rate is 23.78 GPM, Male Face Diameter is 0.94" (24.5mm), Male Hex Diameter is 1.26" (32mm) and Female Hex Diameter: 1.26" (32mm), Thread is M14.
• •Quick Disconnect Coupler with Dust Caps: The included dust caps prevent dirt from entering the system, which could cause coupler failure or premature wear of internal components. The couplers feature advanced anti-rust perfomance thanks to a new chrome plating treatment, ensuring optimal condition even in harsh environments.
• •Flat Face Hydraulic Quick Connect Coupling: The durable locking sleeve design provides added strength and stability during operation, minimizing the risk of accidental disconnection.
• •CAUTION: These ISO 16028 hydraulic couplings are not suitable for use with Hydraulic Breaking Hammers.
