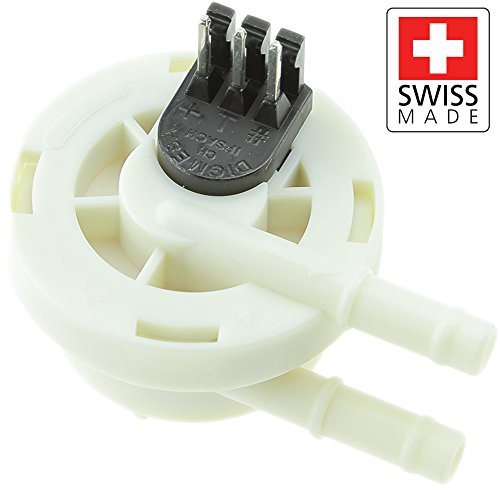

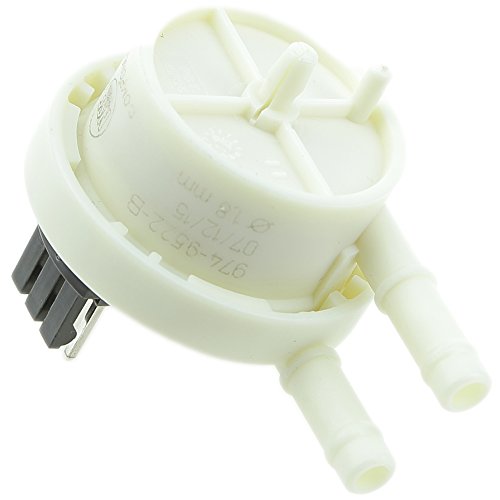

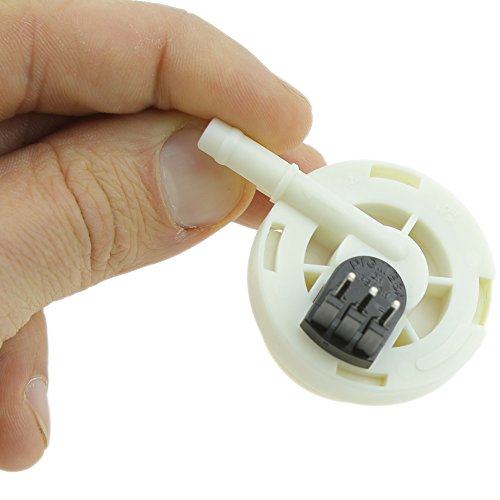

Digmesa FHKSC Flow Sensor/Meter with 1.8mm. nozzle (Swiss Made) | For Drink Dispensers, Chemicals, Vending and Household Coffee Machines
Key features
- •✅SWISS QUALITY PRECISION FLOW SENSORS - Perfectly suited for applications requiring good quality at an attractive price, for instance, in coffee machines for home use. Water flow sensors are installed on the pump's suction side. Its light-weight design and flexible choice of connection position perfectly match manufacturers' requirements.
- •✅BEER INDUSTRY - With Digmesa's flow sensors you are ready, for instance, when it comes to thousands of beer-thirsty spectators who need to be served during a short break in a big sports stadium. Besides, we can guarantee a stable quality for household and industrial coffee machines.
- •✅UNBELIEVABLE SPECIFICATIONS - Water Flow rate 0.09 - 0.90 l/min with pulse signal and innovative materials (Fiberglass Reinforcement and arenite) provides max. pressure < 0.3 bar and Pulses/litre (2M) ~1300 shows that following water flow sensor made in Switzerland is an absolute leader in the market.
- •✅MEDICAL, CHEMICAL AND OTHER INDUSTRIES - Water flow sensors monitor the whole process to ensure that a liquid has in fact been dispensed - even under the hardest of conditions. For instance in hospitals where aggressive media such as acids and bases must be controlled when disinfecting equipment and surgical instruments. Digmesa offers the ideal solution with highly specialised instruments based on laser or ultrasound technology.
- •✅100% SATISFACTION GUARANTEE OR FULL REFUND. We produce superb quality submersible pumps 12V that we know you will love, so we are betting on it. If you are not 100% satisfied, we will make it up to you with an instant full refund. We want to make sure every client will be happy with our product. In addition, we provide a replacement guarantee. Just email us and we will answer you within 24 hours. There is no time to think, order your compact water pump 12V right NOW.
- •Housing Material: PVDF
- •Bearing pin: Injection-moulded like the housing
- •Nozzle: Injection-moulded like the housing
- •O-ring: EPDM
- •Turbine: PVDF 4 Magnet
- •Magnets: SmCo (not in contact with the medium)
- •Flow rate: 0.071 - 0.48 l/min
- •Continuous operation: Turbine <500 rpm
- •Measuring accuracy: +/- 2.0%
- •Temperature range: -10°C to +65°C (14°F to 149°F)
- •Nozzle size: Ø 1.8 mm
- •Pressure range: -1 bar to 0.3 bar at 20°C-14.5 psi to 4.35 psi /68°F
- •Power supply: +3.8 to +24 VDC
- •Consumption: <8 mA
- •Signal connection: Open collector NPN
- •Signal voltage: 0 VDC GND (saturation <0.7 V)
- •Signal load: max. 20 mA
- •Leakage current: max. 10 μA
- •Connections: PANCON MAS-CON 156 MLSS
- •Signal: Square-wave output
Digmesa FHKSC Flow Sensor/Meter with 1.8mm. nozzle (Swiss Made) | For Drink Dispensers, Chemicals, Vending and Household Coffee Machines
List Price: $36.86$33.17DEALYou Save: $3.69 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 25, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
