MakerFocus 4pcs 8-Digit 7 Segment Module MAX7219 8 Bit Digital Segment Tube LED Display Module Supports Cascade Eight Bit Serial 3 IO Ports for Arduino MCU/51/AVR/STM32
Key features

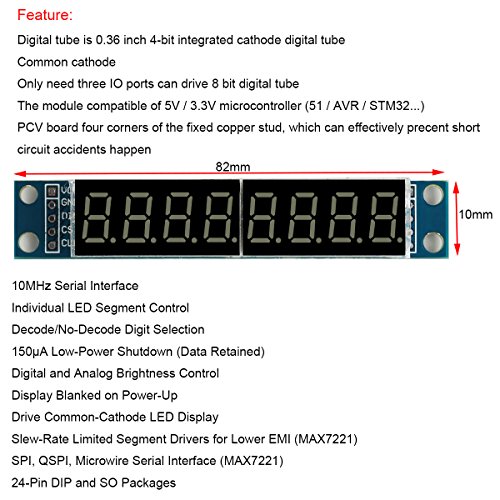

- •MAX7219 is an integrated serial input / output common-cathode display driver, which connects your microprocessor to a 7-segment digital LED display with 8 digits; MAX7219 digital display control module, you can use it for Arduino.
- •The module is compatible of 5V / 3.3V microcontroller; Only three IO ports are used to drive the eight digit display.

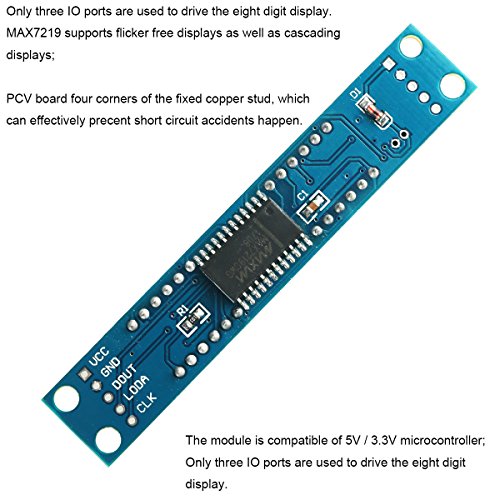

- •Only three IO ports are used to drive the eight digit display. MAX7219 supports flicker free displays as well as cascading displays; PCV board four corners of the fixed copper stud, which can effectively precent short circuit accidents happen.
- •Wiring instructions (a program, for example, you can pick any IO port definition can be modified in the program): VCC to 5V, GND to GND, DIN to P00, CLK to P02, CS to P01; Digital tube is 0.36 inch 4-bit integrated cathode digital tube; Common cathode.

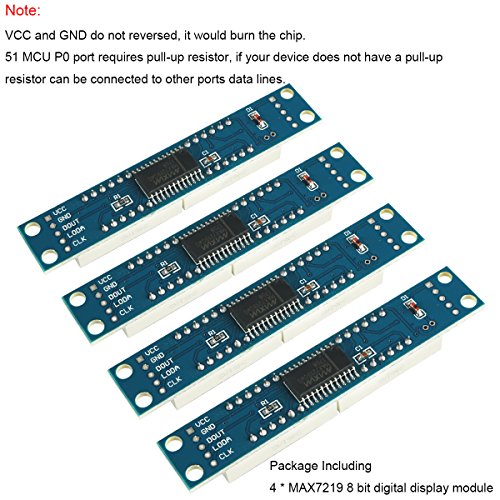

- •Note:VCC and GND do not reversed, it would burn the chip.51 MCU P0 port requires pull-up resistor, if your device does not have a pull-up resistor can be connected to other ports data lines.
BrandMakerFocus
CategoryOptoelectronic Displays
MakerFocus 4pcs 8-Digit 7 Segment Module MAX7219 8 Bit Digital Segment Tube LED Display Module Supports Cascade Eight Bit Serial 3 IO Ports for Arduino MCU/51/AVR/STM32
List Price: $23.26$20.93DEALYou Save: $2.33 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
