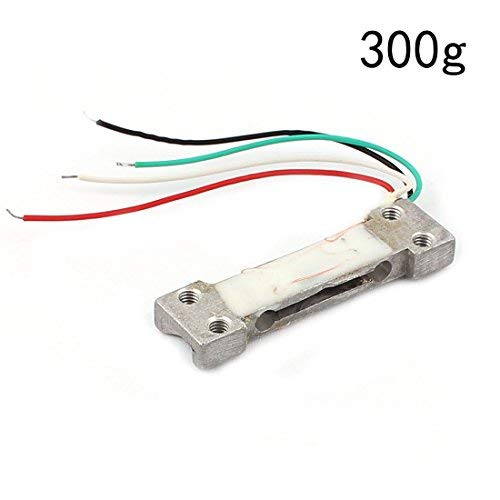

Yohii DC5-10V Mini Scale Electronic Load Cell Weighing Sensor Electronic Scale Aluminium Alloy High Sensitivity 0-300g
Key features
- •Rated Load : 0-300g;Ranted Output : 1.0946mV/V;Lineraity :=<0.005%F.S;Hysteresis : =<0.005%F.S;Repeatability : =<0.005%F.S,Input End : Red+, Black-;Output End : Green+, White-;Test Insrtument : E2000;Force Testing Equipment : Actual Load;Excitation Voltage : 5-10V DC
- •IOutput Impedance : 350±3Ω;Insulation : >5000MOmega/50V DC;Compensated Temperature Range : -10 C~40 C;Operating Temperature Range : -20 C~60 C;Safe Overload : 150%F.S.;Ultimate Overload : 200%F.S
- •measures small changes in the resistance of the strain gauges mounted to the load cell and passes these values directly to any microcontroller (like an Arduino or Raspberry Pi)
- •Electronic laod cell used widly in electronic scales, platform scales, belt scales and other electronic weighing devices., is easy to install
- •On-chip power supply regulator for load-cell and ADC analog power supply,On-chip oscillator requiring no external component with optional external crystal
Yohii DC5-10V Mini Scale Electronic Load Cell Weighing Sensor Electronic Scale Aluminium Alloy High Sensitivity 0-300g
