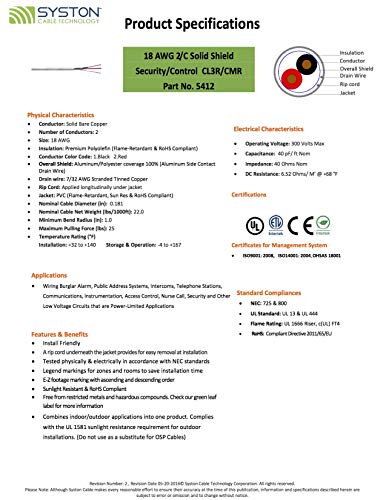

18/2 18 AWG 2 Solid Pure Copper Conductors Shielded Security Control Alarm Cable, UL/ETL CMR/CL3R White 1000ft Box
Key features
- •Applications: Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications
- •Install Friendly. A rip cord underneath the jacket provides for easy removal at installation. Legend markings for zones and rooms to save installation time. E-Z footage marking with ascending and descending order.
- •Sunlight Resistant & RoHS. Free from restricted metals and hazardous compounds. Check our green leaf label for more information
- •Combines indoor/outdoor applications into one product with the added feature of complies with the UL 1581 sunlight resistance requirement for outdoor installations. (Do not use as a substitute for OSP Cables)
- •Lifetime Warranty
- •Conductor: Solid Bare Copper
- •Number of Conductors: 2
- •Size: 18 AWG
- •Insulation: Premium Polyolefin (Flame-Retardant & RoHS Compliant)
- •Conductor Color Code: 1. Black 2. Red
- •Overall Shield: Aluminum/Polyester coverage 100% (Aluminum Side Contact Drain Wire)
- •Drain wire: 7/32 AWG Stranded Tinned Copper
- •Rip Cord: Applied longitudinally under jacket
- •Jacket: PVC (Flame-Retardant, Sun Res & RoHS Compliant)
- •Nominal Cable Diameter (in): 0.181
- •Nominal Cable Net Weight (lbs/1000ft): 22.0
- •Minimum Bend Radius (in): 1.0
- •Maximum Pulling Force (lbs): 25
- •Temperature Rating (°F)
- •ISO9001: 2008, ISO14001: 2004, OHSAS 18001
- •NEC: 725 & 800
- •UL Standard: UL 13 & UL 444
- •Flame Rating: UL 1666 Riser, c(UL) FT4
- •RoHS: Compliant Directive 2011/65/EU
- •Operating Voltage: 300 Volts Max
- •Capacitance: 40 pF/ft Nom
- •Impedance: 40 Ohms Nom
- •DC Resistance: 6.52 Ohms/M' @ +68 °F
CategoryElectrical Wire
18/2 18 AWG 2 Solid Pure Copper Conductors Shielded Security Control Alarm Cable, UL/ETL CMR/CL3R White 1000ft Box
List Price: $148.41$133.57DEALYou Save: $14.84 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
