Key features

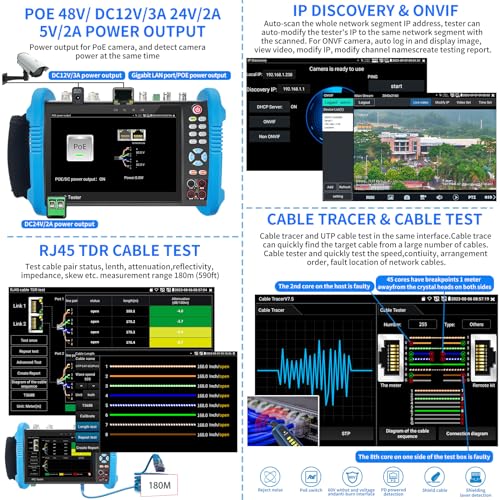

• •【8K IP Camera Tester】Network camera tester support max 8K 32MP 8160*3616P 4K 12MP 4000*3000P IP Camera test. Real-time network traffic detection in the status bar. Rapid Video, auto view the video, create testing report. IP Discovery/ONVIF/IPC test /RTSP play /Client APK. CCTV Tester built-in special tools for Hik and for DH and other 3rd brand camera test tools, support batches of fast setting of Hik and DH cameras and compatible with most existing cameras.
• •【HD Coaxial Camera Test & Cable Tracer】Max 8MP TVI/AHD/CVI/EX-SDI,HD-SDI,3G-SDI camera test and also support CVBS camera test,NTSC/PAL(Auto adapt).Color bar generator.Analog level test,Built-in "Auto HD" APP can automatically recognize the camera type.Support Coaxial UTC control & call OSD menu,RS485 control,compatible with more than 30 protocols such as for PELCO-D/P etc. With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables
• •【Professional testing tools】PoE IEEE802.3af/at 48V, maximum power 25.5W.POE protocol detection.Power management.Powerful network tools trace route,link monitor,DHCP server,port flashing,Ping test.UTP cable test. RJ45 TDR cable. CCTV camera monitor upgraded to Android 11 version.With 7 inch IPS touch screen,1280*800 resolution.Built-in 7.6V/7800mAh/59.28Wh battery. Dual Ethernet port 10/100/1000Mbps,Support RS485, Audio I/O, VGI input, HDMI I/O, WiFi, DC output:24V/2A,12V/3A,5V/2A, LED lamp.
• •【DMM&OPM&TDR&VFL】Digital Multimeter--Measurement tool for AC and DC voltage, AC and DC current, resistance, capacitance, data hold, relative measurement, continuity testing. Optical power meter--It is used for signal power test and insertion loss test of various equipment and photoelectric components. TDR cable test--masure cable's length and short circuit. Measurement range 1200meter(3937fts).
• •【More models】IPC-9800 series models include IPC-9800(B07K8RFWX6), IPC-9800ADH(B094W22TVT), IPC-9800ADHS(B07K8QD2H3), IPC-9800CADHS(B0BJDVWV6T), IPC-9800CMADHS(B0BYNDNWS4), All features IPC-9800MOVTADHS(B07K8KWKRN). If you are interested in any of the models, you can copy the ASIN code to browse product information.
