Key features

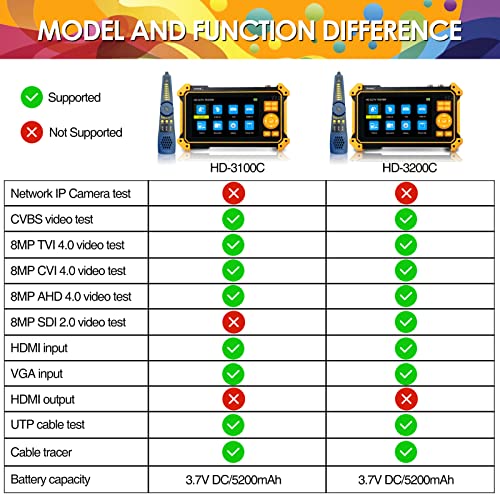

• •4-in-1 Multifunction CCTV coaxial camera test.●Support Analog CVBS camera test, NTSC/PAL (Auto adapt); ●8MP TVI test, 3840 x 2160P 12.5/15 FPS; ●8MP AHD test, 3840 x 2160P 15 FPS; ●8MP CVI test, 3840 x 2160P 12.5/15FPS. ●NOTE:THIS TESTER DOESN'T SUPPORT IP NETWORK CAMERA TESTER
• •5 inch TFT-LCD screen, 800*480 resolution; ●Audio in, support record and save the audio ●LED lamp ●VGA input, up to 1920 x 1200 60fps ●HDMI Input, up to 4K 30fps, support snapshot, video record & playback ●DC12V/1A power output, supply temporarily power for the camera ●5V 1A power output, support reading USB disk
• •Auto HD app, auto recognize HD coax camera type and resolution, support video record & playback ●Coaxial PTZ (UTC control) & call OSD menu ●Support RS485 ●With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables. Support AC Voltage Detector.
• •Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug ●Media player, 4K video files and MKV/MP4 media files play ●1 channel audio signal input, test whether sound normal
• •3.7 V /5200mAh rechargeable battery, after 4 hours charging, working time lasts 6.5 hours; ●DC5V/2A power input; ●Working Temperature: -10~50C, Humidity 30%-90%.Dimension/Weight: 184x110x41mm(7.24x4.33x1.61inch)/0.4kg(0.88lbs)
