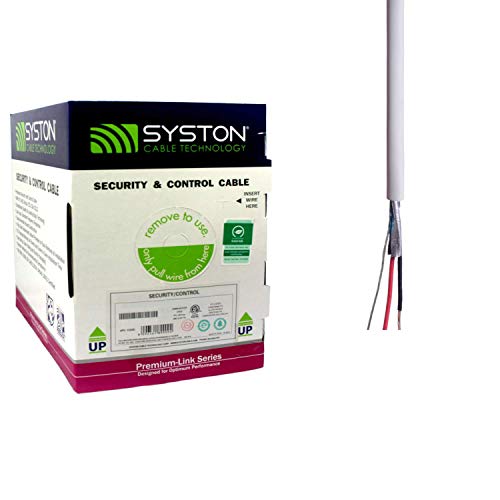

22/2 22 AWG 2 Stranded Pure Copper Conductors Shielded Security Control Alarm Cable, UL/ETL CMR/CL3R White 1000ft Box
Key features
- •Applications: Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits.
- •Install Friendly. A rip cord underneath the jacket provides for easy removal at installation.
- •Tested physically & electrically in accordance with NEC standards. Sunlight Resistant & RoHS Compliant.
- •Free from restricted metals and hazardous compounds. Combines indoor/outdoor applications into one product. Complies with the UL 1581 sunlight resistance requirement for outdoor installations.
- •Do not use as a substitute for OSP Cables.
- •Size: 22 AWG
- •Strand Count: 7/30 AWG Stranded
- •Number of Conductors: 2
- •Insulation: Premium Polyolefin (Flame-Retardant & RoHS Compliant)
- •Conductor Color Code: 1. Black 2. Red
- •Shielding: An aluminum polyester foil shield
- •Drain Wire: A Stranded copper drain wire is longitudinally laid to ensure electrical continuity of the screen.
- •Rip Cord: Applied longitudinally under jacket
- •Jacket: PVC (Flame-Retardant, Sun Res & RoHS Compliant)
- •Nominal Cable Diameter (in): 0.151
- •Nominal Cable Net Weight (lbs/1000 ft): 12.79
- •Minimum Bend Radius (in): 3.0
- •Maximum Pulling Force (lbs): 35
- •Temperature Rating (°F): Installation: +32 to +140 Storage & Operation: -4 to +167
- •ISO9001: 2008, ISO14001: 2004, OHSAS 18001
- •NEC: 725 & 800
- •UL Standard: UL 13 & UL 444
- •Flame Rating: UL 1666 Riser, c(UL)us FT4
- •RoHS: Compliant Directive 2011/65/EU
- •Operating Voltage: 300 Volts Max
- •Capacitance: 40 pF/ft Nom
- •Impedance: 42 Ohms Nom
- •DC Resistance: 17.2 Ohms/M' @ +68 °F
CategoryElectrical Wire
22/2 22 AWG 2 Stranded Pure Copper Conductors Shielded Security Control Alarm Cable, UL/ETL CMR/CL3R White 1000ft Box
List Price: $105.89$95.30DEALYou Save: $10.59 (10%)
