Key features

• •【ENGRAVING MACHINE PARAMETERS】(note: when you received this machine, please contact us to send you the detailed instruction and Mach3 software.) X,Y,Z Working Area : 600(Y)*390（X）*120(Z)mm; Outside dimension : 865*680*570mm（L*W*H）; Table size : 770（Y）*490（X）mm; Lathe structure : 6061/6063 Aluminum alloy; Max. Feeding height : ≤100mm.

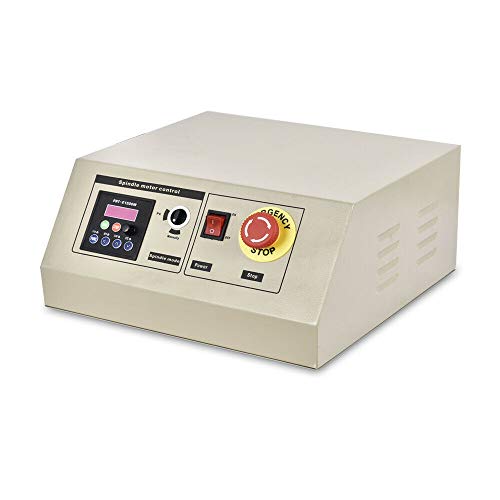

• •【CONTROL BOX PARAMETERS】Operating; Voltage: AC 110V; Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive; Computer connection: USB port; Command code: G code; Protection: Emergency stop button.
• •【PREMIUM MACHINE】The 1.5KW water-cooled VFD is available operating for long time,which can reinforced the processing abilty of the machine and can be used to process aluminum alloy and hard wood, water cooling spindle works more stable and durable. High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.
• •【CAN CONNECT WITH COMPUTER】The mini router frame is movable. The machine can connect with computer as other external device such as printer , scanner... With the assist of the ROUTER 6040T, your design idea will be real-time display.
• •【WORK WITH VARIOUS MATERIALS】This Engraving machine can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.
