Key features

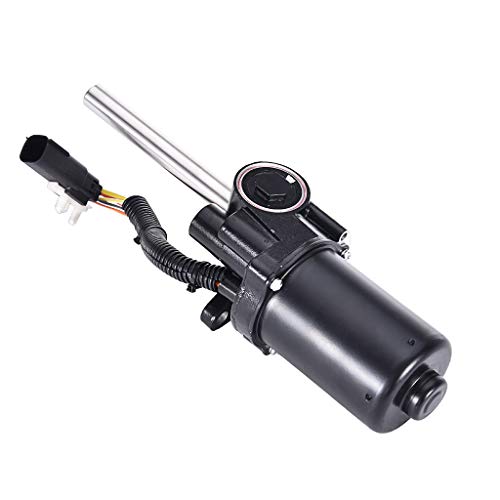

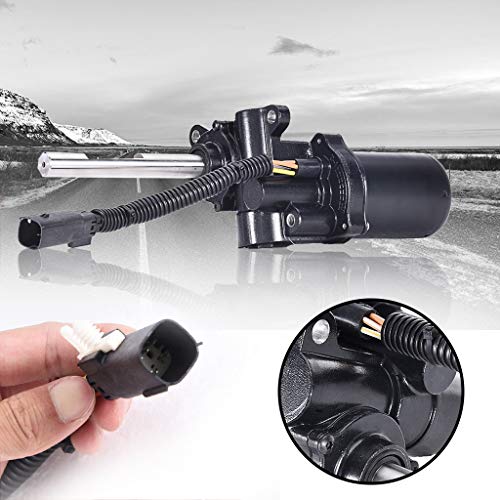

• •🚅【HIGH QUALITY DC RUNNING BOARD MOTORS】 Our motors adopt premier stainless steel, copper and other metals to put an end to unnecessary worries for their quality. With DC 12V voltage and maximum output power of 170W, more convenient usage can be expected.
• •🚅【A PAIR RUNNING BOARD MOTORS】Front right and left side included; Compact design, easy assembly; Provide convenient service while getting on and off the vehicle; Help to create a more beautiful and harmonious overall look; Will not lower passing ability
• •🚅【SPECIFICATION】Model Number: A34970; Maximum Power: 170W (single motor); OE Part Number: AL3Z16A506A + AL3Z16A507A
• •🚅【NOTE THE ORIENTATION OF THE WEDGE AND POSITION OF THE BOARDS】 Stand on the board and work the hinges back and forth, whilst liberally spaying all moving parts with penetrating lubricant, until moving freely. If you improves the operation of the hinges.possibly your motor is OK, and you can re-assemble your board and re-test.Otherwise, you need to replace the motor.
• •🚅【WARM TIPS】 This listing is for running board motors ONLY. No hinge bracket is included. Before ordering, please check through pictures and compatibility to avoid wrong purchasement.
• •Model Number: A34970
• •Placement On Vehicle: Front, Left, Right
• •For Ford F-150 2007-2014
• •(The Compatibility Is Just For Reference. Please Compare The Part Number With Your Original One Before Purchasing!)
• •The steps to remove the running boards and the bracket from the motor:
• •Disconnect the motor loom plug.
• •Undo the four 13mm nuts and two 13mm bolts holding the two brackets.
• •Remove the running board from the vehicle.
• •Remove the plastic end shield.
• •Remove the motor end cover - two screws.Take care not to lose any shims.
• •Spin the armature until it stops. Then you can see the wedge bolt.
• •Remove the wedge bolt.Knock out aluminium wedge from the back.
• •Note the orientation of the wedge, for re-assembly.Also note the position of the boards.
• •Stand on the board and work the hinges back and forth, whilst liberally spaying all moving parts with penetrating lubricant, until moving freely.
• •If you improves the operation of the hinges.possibly your motor is OK, and you can re-assemble your board and re-test.Otherwise, you need to replace the motor.
• •This listing is for running board motors ONLY. No hinge bracket is included.
• •Before ordering, please check through pictures and compatibility to avoid wrong purchasement.
