Key features

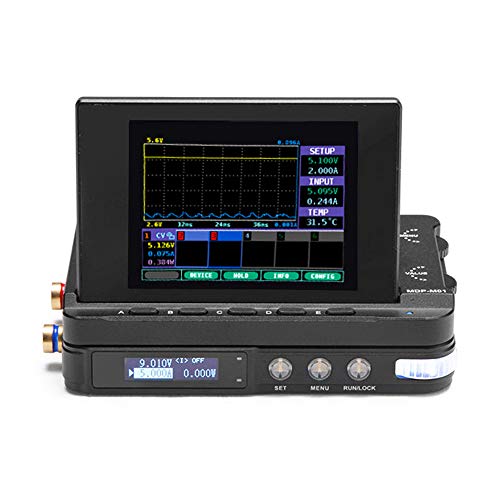

• •★Mini Digital Power System★ MDP-XP is a mini programmable variable linear DC power supply based on modular design with MDP-M01 Display Control Module (display and monitor the I/O parameters) and MDP-P905 Digital Power Supply Model providing max. 30V/5A 90W power output
• •★High Performance★ DC 4.2-30V 100mA-6A wide range input and max. 30V 5A 90W CC CV adjustable output, Utra low power and Load regulation (<0.01%(Power), <0.01% (Load)), High-speed transient response only 4uS and 0.25mV ripple wave supporting positive and negative voltage out, series connection for voltage boost, parallel connecting for current equal distribution,timing output, sequential control, automatic compensation to meet diversiform testing needs

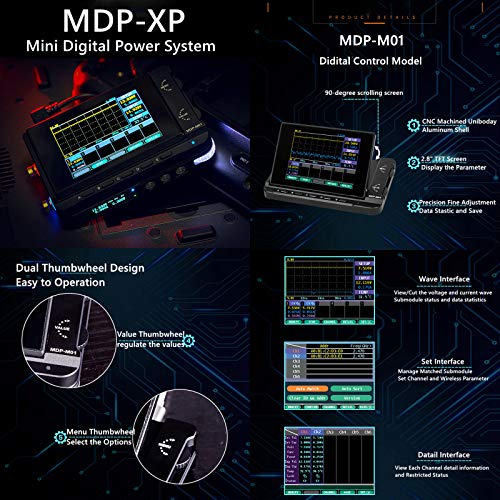

• •★Easy to Use★ 2.8" 320X240 TFT screen display the voltage-current waveform and output parameters in real time with 90-degree scrolling screen and 2.4Ghz wireless connection and and auto-matching control of six sub-modules (P905 digital power module) support up to 6 channels output when more power supply mode connected

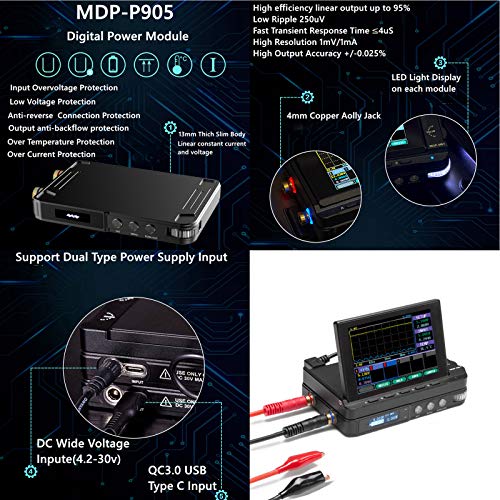

• •★Multi Protections★ Input over-voltage protection, under-voltage protection, anti-reverse connection protection and output anti-backflow protection, over temperature protection, over current protection
• •★Wide Application★ MDP-XP mini programmable digital DC power supply specially designed for electronic, communication equipments maintenance; electrical engineering test and teaching experiments in the R&D laboratory, automotive test and other more functions such as power charger, signal generator is under developing
