Key features

• •【SUPERIOR MATERIALS】All punches and hole cores are made of high-speed steel, with machining accuracy up to 1um level, which can be used for punching thin materials, with long service life. The connecting nut between the punch and the cylinder is made of stainless steel with high strength, beautiful appearance and no rust for a long time.
• •【HIGH EFFICIENCY PUNCHER】This punching machine is of ordinary material passing length. It can reach 55mm/2.2'' from the punching center to the edge of the plastic bag. The thin material can be made of 0.01 PE material, which is usually used to punch the air hole and hook hole of the plastic bag between 0.02-0.2. When the thin material is punched, the frequency of cutting edge repair will increase.
• •【MAIN PARAMETERS】Specifications: 8mm (5/16''); Drive: cylinder diameter 32mm/1.3'', stroke 12mm/0.5'', 15mm/0.6''; Power: compressed air, normal working pressure range is 0.3-1MPa; Structure: the depth of the feed trough is about 80mm, and the distance from the center to the bottom of the feed trough is 55mm/2.2'', the distance from the actual punching center to the bag edge is 55mm/2.2''; Package size: 23cm x 16cm x 13cm (9'' x 6'' x 5''); Shipping weight: 1.5kg/3.3lb.
• •【AIR PRESSURE TIPS】The air pressure can be as low as 0.25MPa, which is usually used for working at 0.3-1MPa (3-10kg air pressure). Too low air pressure will affect the quality of drilling.

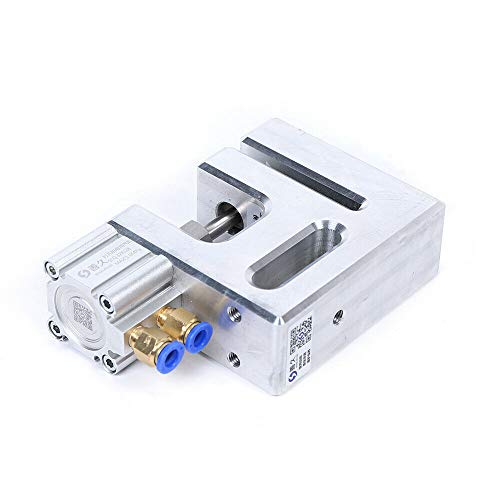

• •【WIDE APPLICATION】Small Round Hole Pneumatic Punch, widely applicatable for Plastic bags, punching, small round hole air holes, small round hole bore holes, hook hang lever. Mainly used for punching and ventilating plastic bags/plastic bags; The small round hole hanging rod hole and hook hole of the small pocket are mainly convenient for the store to hang the goods on the hanging rod or hook; Other small packages or light commodity packages.
