Key features

• •♞【Function】The DIYO three-coordinate probe can realize quick centering, edge finding, center finding, shape measurement and other functions by connecting the CNC to the knife edge, which greatly;Repeatability Accuracy: 0.01 mm/ 0.0004 in. solves the trouble of positioning the workpiece during the second clamping during the machining process.
• •♞【Supported software】Adapt to various control panels such as grbl control panel and Mach3.
• •♞【3 wires】NPN-NO 3 wires: Red-VCC (DC5-24V power);Yellow: IO/ Signal Output;Black- GND(DCM); Indicator light: green light when power on, red light after triggering

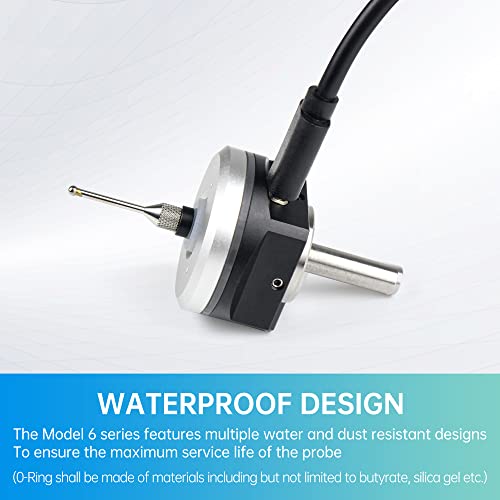

• •♞【Material of the probe】The shell is made of fine frosted black oxidized aluminum alloy with a flat surface anti-roll design.
• •♞【Material of the stylus】The probe tip/stylus is machined from stainless steel up and down, and the ball head is made of tungsten steel ball, which has the advantage of wear resistance.The concentricity is fine-tuned to within 0.05 before delivery. Please measure and adjust it by yourself after receiving the goods. Be sure to use ER11 spring chucks of AAA or above, otherwise the concentricity of the probe tip will be affected.
