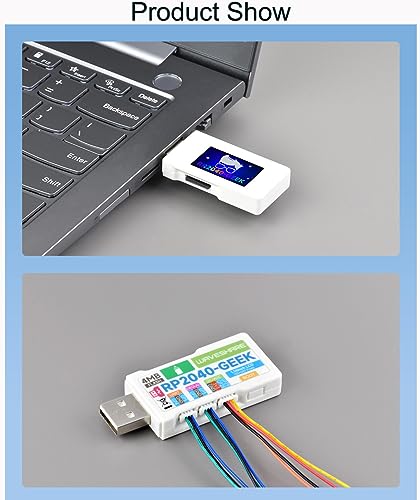

waveshare RP2040-GEEK Development Board, Based On RP2040 Microcontroller, with 1.14inch 65K Color LCD,USB Debugging Downloader Suitable for Raspberry Pi Pico Hardware Debug
Key features
- •RP2040-GEEK is a geeks development board based on RP2040 microcontroller,equipped with plastic case and cables,open-source firmware, more convenient to upgrade. USB debugging downloader, suitable for Raspberry Pi Pico hardware debug.Provides different firmware for SWD port, UART port, and I2C port
- •Onboard 3PIN SWD port for connecting the debugged target board: Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers, Works with OpenOCD and other tools supporting CMSIS-DAP, Adopts the Raspberry Pi 3PIN Debug Connector Specification
- •Onboard 3PIN USB to UART bridge
- •Onboard 4PIN I2C port for the testing target board
- •Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
waveshare RP2040-GEEK Development Board, Based On RP2040 Microcontroller, with 1.14inch 65K Color LCD,USB Debugging Downloader Suitable for Raspberry Pi Pico Hardware Debug
List Price: $31.02$27.92DEALYou Save: $3.10 (10%)
