Key features

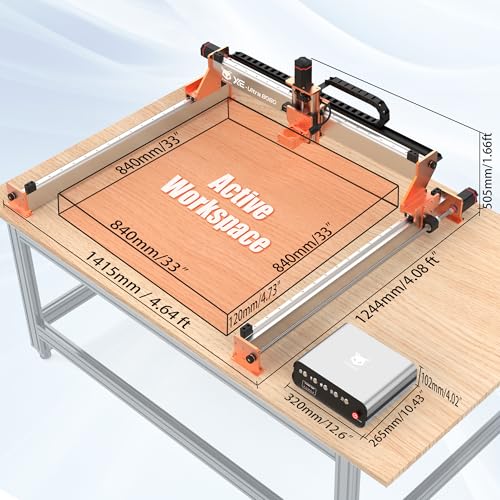

• •Mega-Scale 33"x33"x4.72" Workspace: Tackle ambitious projects with a super large XYZ working area (33x33x4.72in) and 5.3" pass height, engineered for large materials and complex designs.
• •Industrial Rigidity & Precision: Equipped with 16mm ball screws (XY) and 12mm ball screws (Z) paired with HG-15 linear rails on all axes, ensuring smooth and high-accuracy movement. The heavy-duty 46×80mm aluminum frame ensures long-term stability and rigidity.
• •2.6 N.m Closed-Loop Stepper Motors: Featuring 60-86mm closed-loop stepper motors delivering powerful 2.6Nm torque with intelligent step-loss protection, maintaining high performance and precision even at high speed up to 5,000mm/min.
• •Open Spindle Ecosystem: Total flexibility on spindle choices. Customize your setup—supports 65mm routers, FoxAlien 1.5kW VFD spindle, or FA20W/40W/80W engraving modules (65mm clamp included, spindle not included in the package).
• •Industrial Inductive Limit Switches: All-axis sensors offer instant response (0.5ms response), anti-interference performance, and extended durability. Physical hard limits provide dual-layer collision protection.

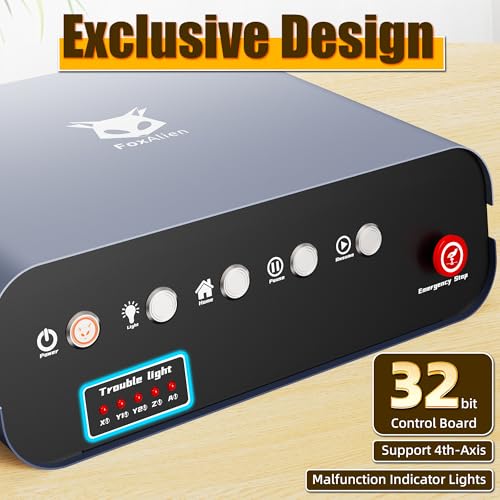

• •Smart 32-Bit Control Box: Features real-time stepper motor diagnostics via malfunction indicator lights for streamlined troubleshooting. There is a reserved port for 4th axis (coming soon).
