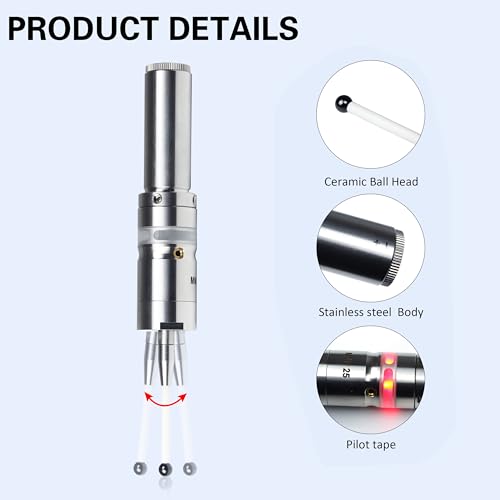

XUNKUNER MMP25 3D Photoelectric Touch Probe Edge Finder,Accuracy 0.001mm,with Ceramic Probe, X,Y,Z Axis Measurement Centering Rod Trigger Sensor Tool Dividing Rod for CNC Lathe Center
Key features
- •Parameter: Model: MMP25;Reciprocating positioning accuracy ≤ 0.001mm; Probe direction: +-X +-Y +Z; Probe safety stroke: X.Y +-15°; Z +5mm; Trigger life:5,000,000 times;Probe Material:Ceramics (NOTE:Powered:3.6V 14250 lithium ,but not included)
- •Measurable material: The 3D Edge Finder can measure insulation materials such as metal, electric wood, wooden boards, plastics, etc. Because the principle of conductivity is not required, the workpiece material and machine spindle are non-conductive and can still be measured
- •High quality: This CNC probe has a measurement accuracy of ≤ 0.001mm and repeatability of ≤ 0.001mm. The edge detector adopts a sturdy sealed housing, with a main body made of stainless steel and a ceramic ball head; Good structural stability, excellent performance, and high measurement accuracy
- •Easy to use ： (1) After installing the 3D edge probe on the machine, rotate the spindle to check the jumping of the probe ball; (2) After detecting the jumping of the probe ball, adjust it with four M3 fixing screws until it reaches a jumping of 0.01mm. (3) Tighten the screw and the probe can be used
- •Package list：1PC MMP25 3D Electronic Edge Finder
BrandXUNKUANER
CategoryTest Probes & Leads
XUNKUNER MMP25 3D Photoelectric Touch Probe Edge Finder,Accuracy 0.001mm,with Ceramic Probe, X,Y,Z Axis Measurement Centering Rod Trigger Sensor Tool Dividing Rod for CNC Lathe Center
List Price: $173.15$155.84DEALYou Save: $17.31 (10%)
