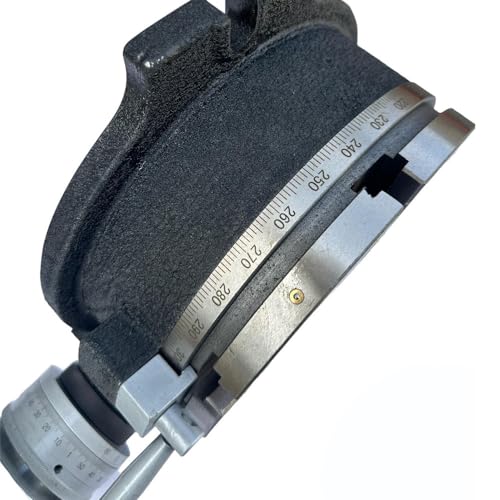

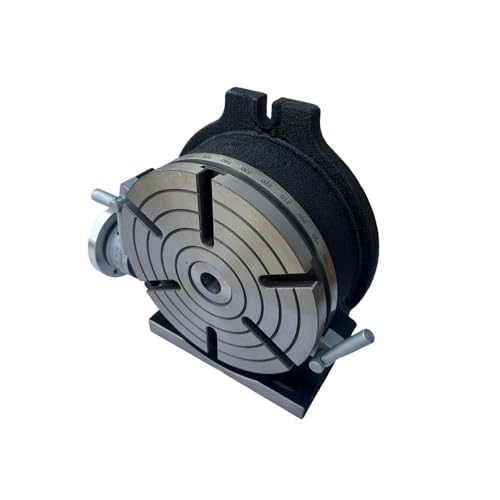

PROLINEMAX 10'' Horizontal & Vertical Rotary Table Vernier Reading Milling Drilling Boring
Key features
- •10'' Horizontal & Vertical Rotary Table
- •Table Diameter: 9.84"; Horizontal O/A Height: 4.53"; Center Height Vertical Position: 6.49"
- •Overall Height in Vertical Position: 12.79''; Overall Width (Not Including Handle) In Vertical Position: 11.02''; Mounting Table Bolt Width :0.63''; T-slot Width: 0.55''
- •Extra Deep Coolant Channel; Dual Positive Action Locks; Satin Chrome Dials; Maximum Individual Spacing Error 4" Table 120", 6" Table 80", 8, 10, 12, 16" Tables 60"; 4" Table Utilizes Low Profile Locks For Added Work Space; Gear Ratio: 4" table is72:1; 6-16" tables are 90:1; Parallelism Of Clamping Surface To Angle Face: .0008"; Squareness of angle Surface To Clamping Surface: .0004"; Flatness Of Clamping Service-concave: .0006"; Concentricity Of Center Bore:.0008
- •Quantity: 1; Shipping Weight: 96 Lbs *Estimate Only*; Squareness of clamping surface to center slot: .0008"
- •10'' Horizontal & Vertical Rotary Table
- •Table Diameter: 9.84"
- •Horizontal O/A Height: 4.53"
- •Center Height Vertical Position: 6.49"
- •Overall Height in Vertical Position: 12.79''
- •Overall Width (Not Including Handle) In Vertical Position: 11.02''
- •Mounting Table Bolt Width :0.63''
- •T-slot Width: 0.55''
- •Extra Deep Coolant Channel
- •Dual Positive Action Locks
- •Satin Chrome Dials
- •Maximum Individual Spacing Error 4" Table 120", 6" Table 80", 8, 10, 12, 16" Tables 60"
- •4" Table Utilizes Low Profile Locks For Added Work Space
- •Gear Ratio: 4" table is72:1; 6-16" tables are 90:1
- •Flatness Of Clamping Service-concave: .0006"
- •Concentricity Of Center Bore:.0008
- •Parallelism Of Clamping Surface To Angle Face: .0008"
- •Squareness of angle Surface To Clamping Surface: .0004"
- •Squareness of clamping surface to center slot: .0008"
- •Shipping Weight: 96 Lbs *Estimate Only*
- •Quantity: 1
BrandPROLINEMAX
CategoryCategories
PROLINEMAX 10'' Horizontal & Vertical Rotary Table Vernier Reading Milling Drilling Boring
List Price: $714.39$642.95DEALYou Save: $71.44 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It October 27, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
Customer Reviews
Reviews sourced from verified Amazon purchasers4.6
out of 5
Based on 2 reviews
5★
50%
4★
50%
3★
0%
2★
0%
1★
0%
Five Stars
Kindle Customer✓ Verified Purchase•September 6, 2023
Works great.
Good buy
james "TIGGUY" gibson✓ Verified Purchase•June 24, 2023
I've not had any issues so far. Seems like a decent product without the Brown & Sharp price. Holds tolerance well
