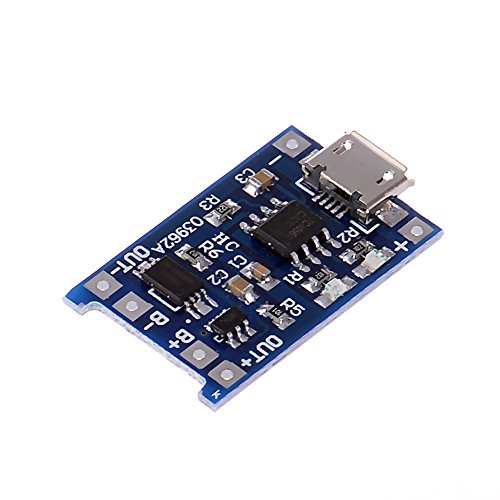

Anmbest TP4056 Micro USB Open Source 5V 1A 18650 Standalone Linear Lithium Battery Charger Over Charge Discharge Protection Integrated Board(Pack of 10)
Key features
- •MULTIPLE PROTECTION: Micro USB lithium ion / lipo / 18650 battery charging board with overcharge, overdischarge and overcurrent protection, other features include current monitor, under voltage lockout, automatic recharge
- •CC/CV CHARGING: This module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method, charge port can take power from USB

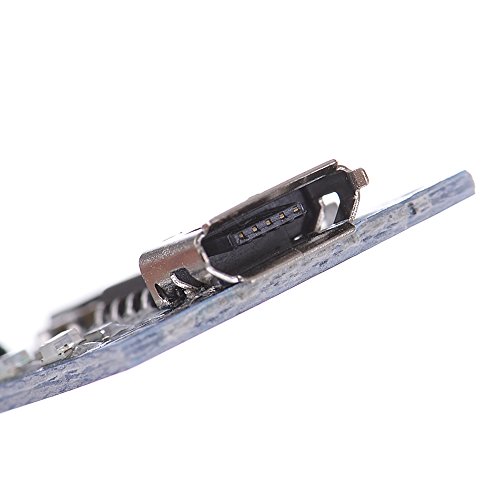

- •MULTIPLE CHARGING METHOD: The input has a MINI USB socket, which can be used to directly charge the lithium battery with the mobile phone charger, and still retains the input voltage wiring solder joints, which can be very convenient DIY. On-board micro USB and soldering joints 5V input port and charging status indicator(red indicator is charging, green indicator is full charged)

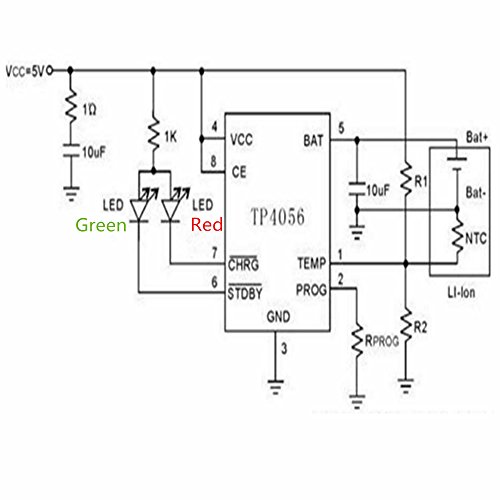

- •ADJUSTABLE CHARGING CURRENT:The charge current can be modeled externally with the Rprog resistor R3

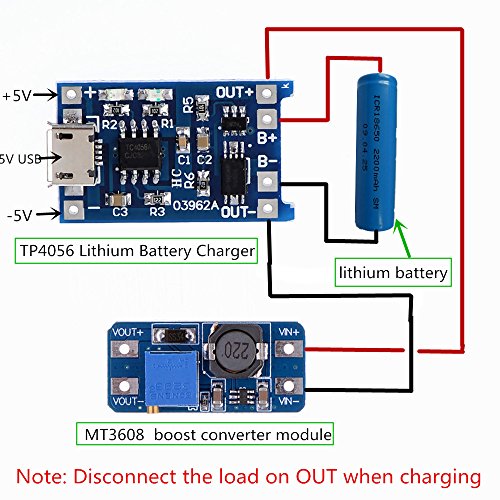

- •DRIVE LOAD: OUT+ and OUT- can be connected to the load, such as the booster converter module/buck converter module or other loads.
BrandAnmbest
CategoryCategories
Anmbest TP4056 Micro USB Open Source 5V 1A 18650 Standalone Linear Lithium Battery Charger Over Charge Discharge Protection Integrated Board(Pack of 10)
List Price: $15.50$13.95DEALYou Save: $1.55 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (1)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
