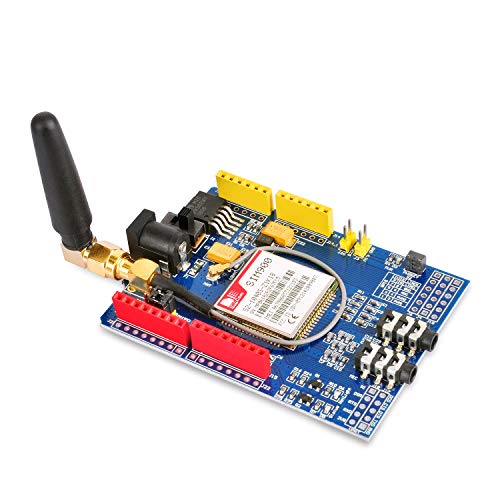

Gowoops Quad-Band GSM GPRS SIM900 Shield Development Board for Arduino Uno
Key features
- •✔ Quad-Band 850 / 900/ 1800 / 1900 MHz - would work on GSM networks in all countries across the world.
- •✔ Control via AT commands - Standard Commands: GSM 07.07 & 07.05 | Enhanced Commands: SIMCOM AT Commands.
- •✔ Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal).
- •✔ Embedded TCP/UDP stack - allows you to upload data to a web server.
- •✔ Industrial Temperature Range - -40°C to +85 °C
- •GPRS multi-slot class 10/8
- •GPRS mobile station class B
- •Compliant to GSM phase 2/2+
- •Class 4 (2 W @ 850 / 900 MHz)
- •Class 1 (1 W @ 1800 / 1900MHz)
- •RTC supported.
- •Selectable serial port.
- •Speaker and Headphone jacks
- •Low power consumption - 1.5mA(sleep mode)
- •M2M (Machine 2 Machine) Applicatoions
- •Remote control of appliances
- •Remote Weather station or a Wireless Sensor Network
- •Vehicle Tracking System with a GPS module
- •Make sure your SIM card is unlocked.
- •The product is provided as is without an insulating enclosure. Please observe ESD precautions specially in dry (low humidity) weather.
- •The factory default setting for the GPRS Shield UART is 19200 bps 8-N-1. (Can be changed using AT commands).
- •Power select - select the power supply for GPRS shield(external power or 5v of arduino)
- •Power jack - connected to external 4.8~5VDC power supply
- •Antenna interface - connected to external antenna
- •Serial port select - select either software serial port or hareware serial port to be connected to GPRS Shield
- •Hardware Serial - D0/D1 of Arduino
- •Software serial - D7/D8 of Arduino
- •Status LED - tell whether the power of SIM900 is on
- •Net light - tell the status about SIM900 linking to the net
- •UART of SIM900 - UART pins breakout of SIM900
- •Microphone - to answer the phone call
- •Speaker - to answer the phone call
- •GPIO,PWM and ADC of SIM900 - GPIO,PWM and ADC pins breakout of SIM900
- •Power key - power up and down for SIM900
- •1 x GSM GPRS SIM900 Shield
