Key features

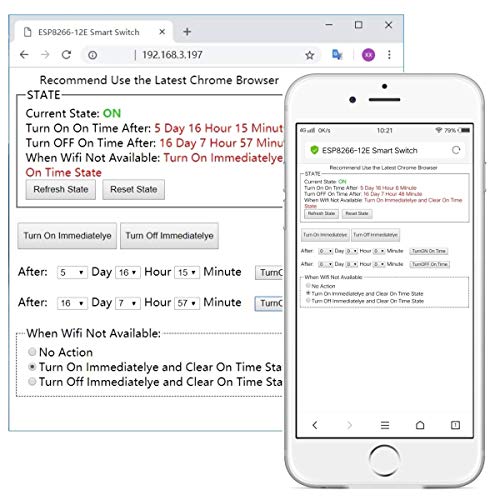

• •✔️Smart Switch Kits make a switch by ESP8266-12E developed in Arduino IDE,No need to install any apps,remotely control electrical appliance in LAN via a mobile phone or computer.Remote ON/OFF,timed ON/OFF and state switching when WIFI disconnected has been implemented in the sample code.Or you can modify the code to achieve more fun features
• •✔️【Relay Module】:The module can be high or low by a jumper setting trigger,Maximum load:AC 250V/10A,DC 30V/10A,Trigger current:5mA,Working voltage:5V Low level trigger.With the power supply and relay instructions, pull off, disconnect does not shine.can be used as a microcontroller development board module, can be used as a home appliance control.DC or AC signal control,can control 100-250v AC load.There is a normally open and one normally closed contact

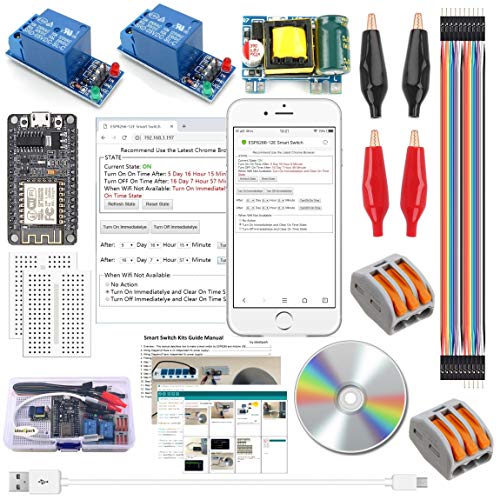

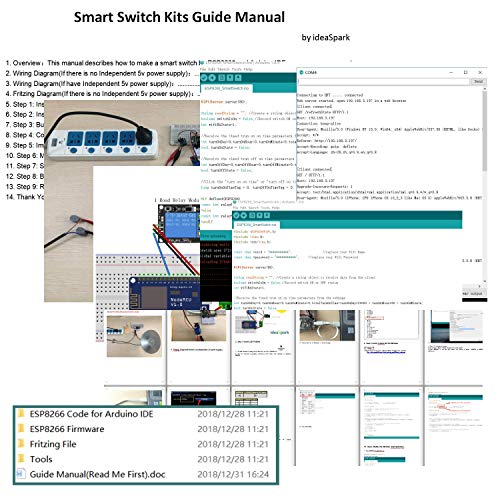

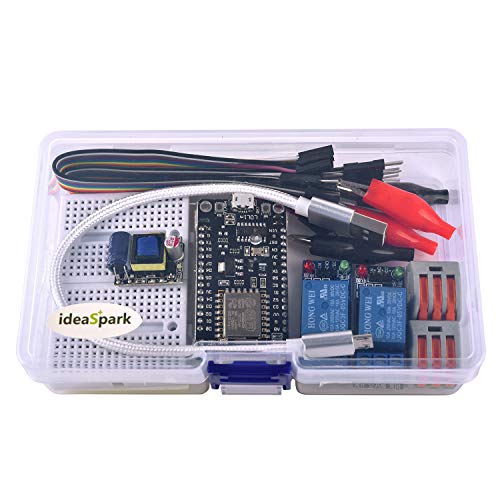

• •✔️We have prepared Smart Switch Kits hardware.And 53M guidance manual,demo code,burning tools,necessary class libraries already on CD-ROM disk.or contact us on Amazon,we will send download link to you.Package List：1xESP8266-12E,2x1 Channel Relay Module,1xVoltage Converter,4xAlligator Clip,2xWire Connector,1xUsb cable,2xBreadboard,20xDupont cable,1xCD-ROM

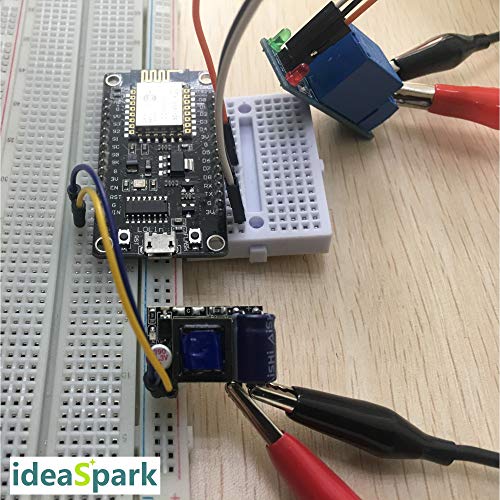

• •✔️【ESP8266-12E】:The ESP8266-12E is a highly integrated chip designed to meet the needs of the new connected world. It provides a complete and independent Wi-Fi network solution.Built-in Micro-USB,with flash and reset switches,easy to program,Full I/O port,Wireless 802.11 b/g/n WLAN supported and integrated 25dBm antenna,Comfortable prototyping by simple programming via Lua-Script or Arduino code and breadboard-optimized construction (23 mm pin spacing).works great with Arduino IDE
• •✔️【5V Converter】:AC45V-277V DC65V-390V input voltage,high low voltage isolation,5V 0-700mA output voltage isolation.PLEASE NOTE:when connect converter and wire,don't touch any metal part on converter to prevent electric shock.Carefully follow wiring diagram in guidance document【Wire Connector】:Connect copper wire faster.3 conductor.PLEASE NOTE:in this kits we don't provide any wires to connect appliance.When you connect wire to high-voltage power supply,be VERY CAREFUL to prevent electric shock
