Key features

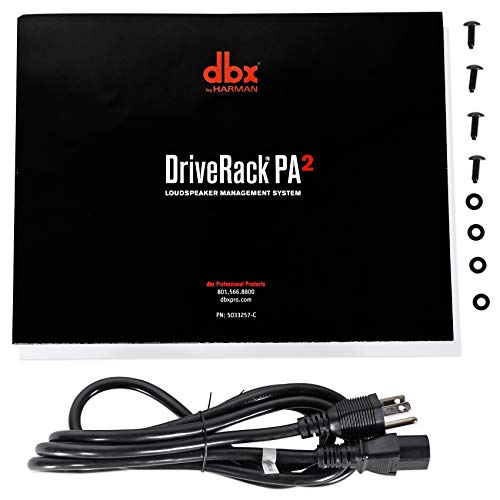

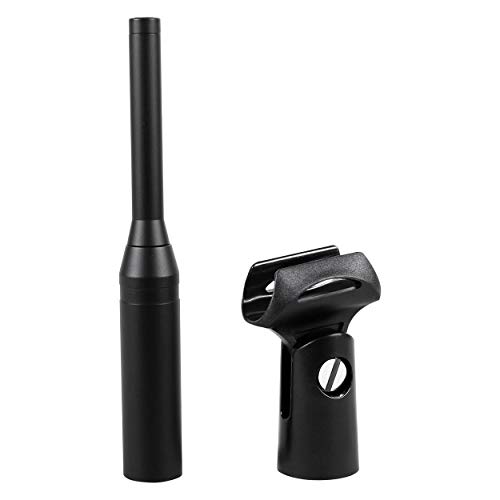

• •Package: (1) DBX DriveRack PA2 Complete Sound Signal Processor Speaker Management System PA 2, (1) DBX RTA-M Omni Condenser Acoustic Measurement Microphone Mic DRIVERACK PA+ 260
• •DBX DriveRack PA2 Complete Sound Signal Processor Speaker Management System, All New Setup Wizard, Streamlined AutoEQ, All New AFS (Advanced Feedback Suppression), Mobile Control (Android, iOS, Mac, Windows), dbx Compression, dbx Limiting, Graphic EQ, 8-Band Parametric EQ (adjusted when using the AutoEQ) Input, 8-Band Parametric EQs (used for speaker tunings) Output, Sub-Harmonic Synthesis, Crossover (supports full range, 2-way, and 3-way systems), Driver Alignment Delays
• •Specifications: Input: (2) Line Inputs, (1) RTA Mic Input. Input Connectors: (2) Female XLR Line Inputs, (1) Female XLR RTA Mic Input. Input Type: Electronically Balanced, RF Filtered. Input Impedance: > 50 kOhm. A/D Converter: dbx Type IV Conversion System. CMRR: > 45 dB. Mic Preamp Phantom Power:: +15VDC (RTA). Mic Preamp Equivalent Input Noise (EIN): < -117dB, 22Hz-22kHz, 150 ohm (RTA)
• •Output: (6) Line Outputs. Output Connectors: Male XLR. Output Type: Electronically Balanced, RF Filtered. Output Impedance: 120 Ohms. Max Output: 20 dBu. A/D Dynamic Range: 112 dB A-Weighted, 110 dB Un-Weighted. Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, un-weighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
• •Input Delay Length: 100ms, Alignment Delay: 10ms Per Channel (60ms Total), Sample Rate: 48 kHz, Dynamic Range: >110 dB A-Weighted, >107dB Un-Weighted, THD + Noise: 0.003% Typical at 4dBu, 1 kHz 0dB Input Gain, Frequency Response: 20Hz - 20 kHz, Inter-Channel Crosstalk: < -110 dB, -120dB Typical, Operating Voltage: 100-120VAC, Power Consumption: 22W, D/A Dynamic Range: 112dB A-Weighted, 110dB Un-Weighted, Product Dimensions (H x D x W): 1.75" x 5.75" x 19" inches, Product Weight: 5.25 Lbs.
