Key features

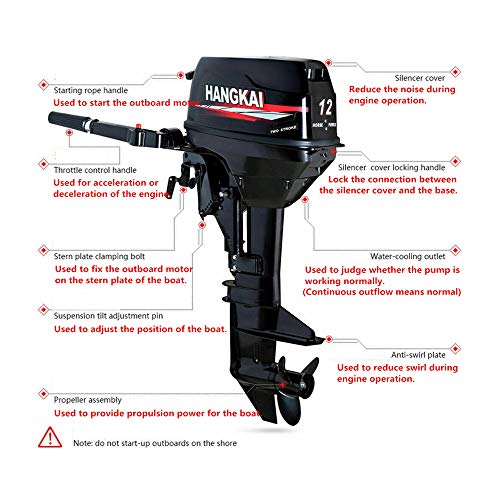

• •【HIGH PERFORMANCE OUTBOARD MOTOR】Water cooling technology to improve the reliability of the whole machine. Features 360 degree steering rotation for reverse without gear shifting. Start-in-gear protection feature prohibits prop rotation while idling. Easy pull off engine cover with push button latch for instant motor access. Convenient use and easy operation.
• •【MAIN PARAMETERS 1】Displacement: 169CC, Gear ratio: 2.08 (27:13), Cylinder: 2, Max.Output: 8.8KW, Max.speed: 4500-5500RPM Gear Positions: F-N-R Ignition System: CDI Cooling System: Water-cooling, Control System: Tiller control, Starting System: Manual start, Control System: #93 gasoline.

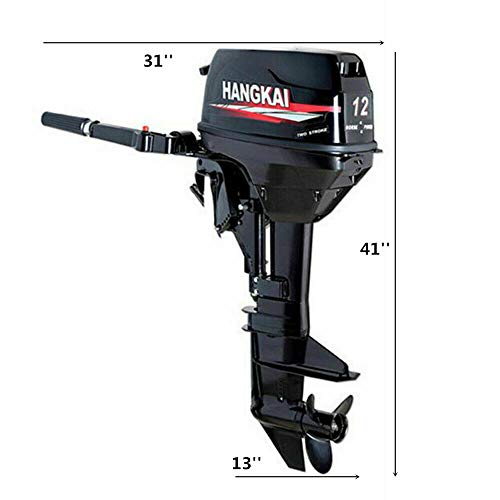

• •【MAIN PARAMETERS 2】Bore x Stroke: 50mm x 43mm (2'' x 1.7''), Recommended Propeller range: 3-9"1/4''x8", Recommended Lubricant: 2 Stroke Lubricating oil, Mixing ratio: Fuel:oil = 50:1, Trim and tilt system: Manual Tilt, Standard fuel tank capacity: 24L/6.3gallon/810oz), Overall size: 78.3cm x 33.2cm x 104cm (31'' x 13'' x 41''), Net weight: 27kg/59lb, Package size: 98cm x 68cm x 42cm (38'' x 26'' x 16''), Shipping weight: 33kg/72lb.
• •【ENERGY EFFICIENT DESIGN】Compact design, large tank capacity, fuel saving, strong horsepower, superior performance, travel safer, more energy efficient, more environmentally friendly, more reliable. Perfect match inflatable boats, fishing boats, sailboats, and small yachts. Performance more superior, quick start, positions the motor at several angles.
• •【OPERATION TIPS】Firstly, fill the gear oil (open gear box lid and fill it); Secondly, fill No.92 petrol, lightly press oil pump 6-10 times; Thirdly, fill engine oil don't exceed the head of the pattern; Forthly, turn the throttle to the start up and turn the accelerator gets up to 50%; Then, rapidly pull the starter line; After the motor start, please turn the throttle to running state; Then, it can be operated now.
