10Pcs Micro SD Storage Expansion Board TF Card Memory Card Reader Adapter Module SPI Interface with Integrated Circuit Breakout
Key features
- •Micro SD storage expansion board support micro SD card, micro SDHC card (high-speed card),voltage: 4.5V~5.5V DC; Communication Interface: Standard SPI; Interface Voltage Level: 3.3V or 5V; Applicable card type: Micro SD card, micro SDHC card
- •The level conversion circuit board that can interface level is 5V or 3.3V, communication interface is a standard SPI interface

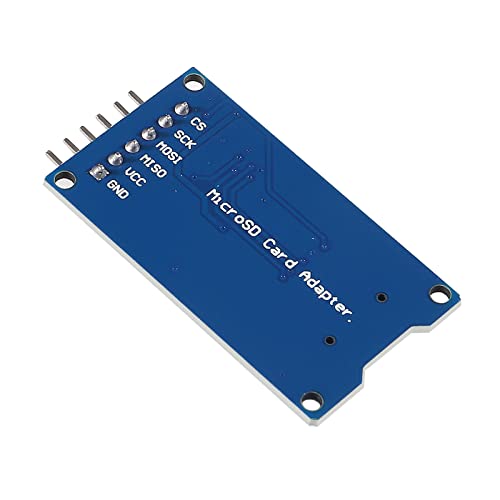

- •Micro SD storage expansion board control interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin

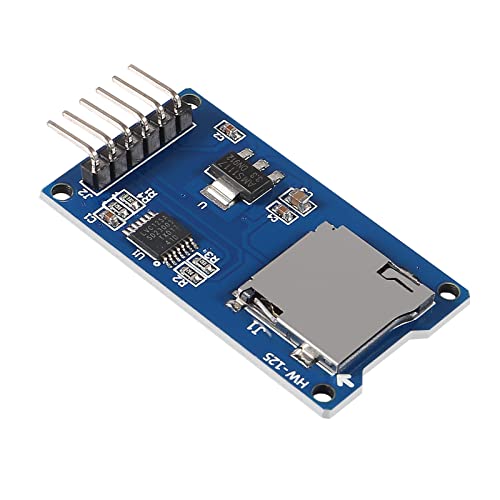

- •3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply; Level conversion circuit: Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal
- •Micro SD card connector: since the bomb deck for easy card insertion and removal, mounting holes: 4 M2 screws positioning hole diameter of 2.2mm, easy to install positioning, to achieve inter-module combination
BrandShutao
CategorySingle Board Computers
10Pcs Micro SD Storage Expansion Board TF Card Memory Card Reader Adapter Module SPI Interface with Integrated Circuit Breakout
List Price: $13.56$12.20DEALYou Save: $1.36 (10%)
