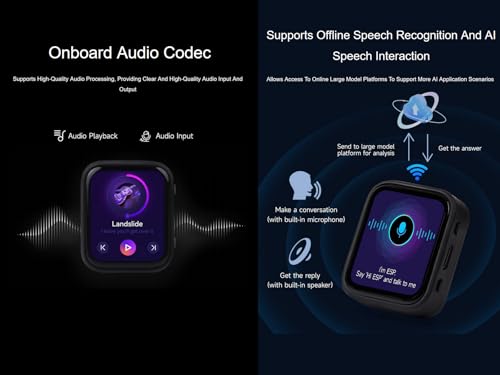

ESP32-S3 1.8inch AMOLED Touch Screen Development Board, 368×448 16.7M Color Display, 32-bit LX7 Dual-core Processor, Support 2.4GHz Wi-Fi and BLE-5, Onboard 6-Axis IMU, RTC, Audio Codec, etc.
Key features
- •ESP32-S3 1.8inch AMOLED touch display development board equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- •Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
- •Built in 512KB of S-R-A-M and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback
- •Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads
- •Type-C connector, easier to use. Onboard PWR and BOOT programmable buttons for easy custom function development. Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging
Brandwaveshare
CategorySingle Board Computers
ESP32-S3 1.8inch AMOLED Touch Screen Development Board, 368×448 16.7M Color Display, 32-bit LX7 Dual-core Processor, Support 2.4GHz Wi-Fi and BLE-5, Onboard 6-Axis IMU, RTC, Audio Codec, etc.
List Price: $62.00$55.80DEALYou Save: $6.20 (10%)
Free shippingFree Returns – 30 daysFree Order CancellationSecure Payment2–3 Days DeliveryGet It June 23, 2026In Stock (2)No marketing spamNo account requiredFulfilment by FedEx / Amazon / UPS / ShipwirePayPal / Card Buyer Protection
