Key features

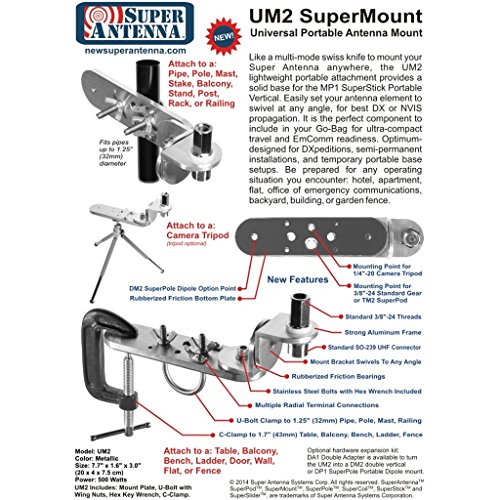

• •THIS IS: The model UM2 SuperMount Universal Portable Mount for portable antennas, a seriously cool piece of antenna hardware made by Super Antenna. It is the companion to the #1 HF Portable Vertical Antenna worldwide, the MP1 Super Antenna. Like a multi tool to clamp your antenna anywhere, it is designed as part of a /portable /backpack /base /travel antenna system for Ham Radio. It clamps onto a convenient surface and provides the coaxial connection, electrical connection, and mechanical stability for holding your antenna in place during operation.
• •OPERATION: Designed for field deployment of Super Antenna MP1 and other types of antennas such as mobile ham or CB mobile antennas. It is for transmitting, receiving, and scanning on HF and VHF-UHF radio frequencies. Operators who demand top performance choose the SuperMount because it is durable, reliable, compact, and versatile. Instantly clamp and set up your antenna for EmComm severe weather operations, Backpacking, DXpeditions, or any type of base installation. The swivel bracket is adjustable 360 degrees to all angles for DX or NVIS in any mounting position. The SuperMount works with Ham, Marine, Government, NGO, CAP, MARS, EmComm, Shortwave, CB, MURS, FRS, GMRS, PMR, Weather, FM, Scanner, and everything in between.
• •SIZE: Extremely compact 7.7"x1.6"x3.0" (20x4x7.5cm) for travel, it fits easily into a pocket of your Go Bag. WEIGHT: Only 1.1 pounds (500g), lightweight for travel, yet extremely strong and heavy duty. POWER RATING: 500W SSB, 300W CW/DATA. RADIAL TERMINAL SIZE: Two standard quarter-inch (6mm) male push-on male tabs provide secure quick disconnect for matching SuperWire Radial Sets and ground lugs to the mounting plate. PLATE HOLE SIZES: One hole with 3/8"-24 threads for various mounting or dipole configurations. One hole with 1/4"-20 threads for mounting atop any standard camera tripod. Two holes for quarter-inch (6mm) bolts spaced 1-1/2" (39mm) apart for U-bolt or bolting to objects. WIND RATING: 95MPH (150kph or 43m/s). HEX SCREWS: Swivel angle bracket has stainless steel hex head machine screws, size-compatible with either 3/16 inch or 5mm metric, with hex key wrench included in package.
• •COMPATIBILITY: Fully compatible with all Super Antenna equipment, Ham radios, CB radios, scanners, and shortwave receivers. Compatible with most Ham radio mobile antennas, and CB mobile antennas. CONNECTOR: SO-239 (PL259 compatible) with 50 ohm standard impedance. FITTINGS: Antenna fitting is radio industry standard 3/8"-24 female thread, compatible with standard ham and CB mobile antennas. U-bolt mounts the UM2 SuperMount onto pipes, masts, railings, poles, and posts. C-clamp mounts the UM2 SuperMount onto tables, balconies, benches, ladders, and fences. TRIPOD COMPATIBILITY: Screws directly onto all types of standard Camera Tripods, and Super Antenna SuperPod tripods.
• •CONTENTS: UM2 SuperMount + U-Bolt + C Clamp + Hex Wrench. U-BOLT: Fits posts up to 1-1/4" (32mm) diameter. C-CLAMP: Fits up to 1-3/4" (43mm) thick objects. Two terminal connections for ground radials. Strong aluminum frame. Rubberized friction plate. Coaxial fitting. MATERIALS: High quality aircraft-grade aluminum, stainless steel, brass connectors, with polymerized rubber friction plates. COLOR: Natural metallic silver. RECOMMENDED ACCESSORIES: Super Antenna model MP1B SuperStick; Super Antenna model MP1R SuperWhip; Super Antenna model SW1 SuperWhip; Super Antenna model MC80 SuperCoil 80m/75m optional coil; Super Antenna model TW1 Telescopic Whip; Super Antenna Radial Set models MR642, MR8060, MR8075, MR4010, MR4020, MR2010, MR1710. NOTE: THIS IS NOT A COAXIAL CABLE. THIS IS ONLY A MOUNT FOR ANTENNAS. THIS IS NOT AN ANTENNA.
